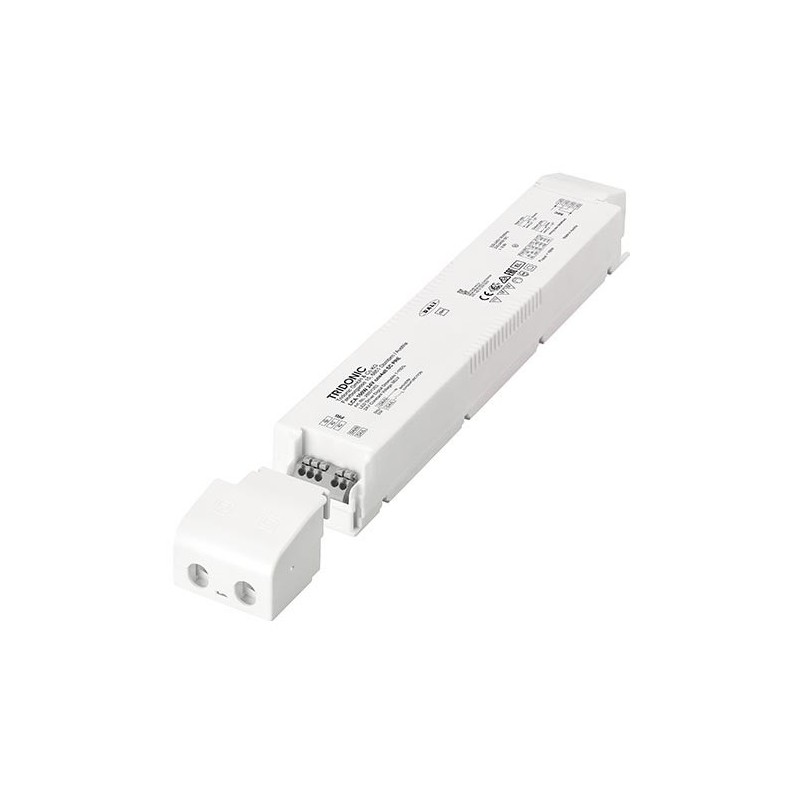

Driver LCA 100W 24V one4all SC PRE DALI

Product description

Dimmable 24 V constant voltage LED Driver for flexible constant voltage strips

Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)

One4all interface and ready2mains enable different dimming options

Dimming range 1 to 100 %

No additional external dimmer is needed

Suitable for emergency escape lighting systems acc. to EN 50172

Nominal life-time up to 50,000 h

5-year guarantee

Typical applications

Cove lighting, facade accent lighting, ceiling integration

Technical details

24 V, 100 W

Small design (295 x 43 x 30 mm) with streched-compact strain relief

Small cross section

Push terminals for simple wiring

Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)

ready2mains (configuration and dimming via mains)

Terminal blocks: 45° push terminals

Kood	Kirjeldus		KM-ta	KM-ga	ühik
28001253	Led Driver LCA 100W 24V one4all SC PRE DALI/Touch toiteplokk Tridonic		79,78 €	97,33 €	tk

Kood: 28001253

Led Driver LCA 100W 24V one4all SC PRE DALI/Touch toiteplokk Tridonic

KM-ta: 79,78 €
KM-ga: 97,33 €
