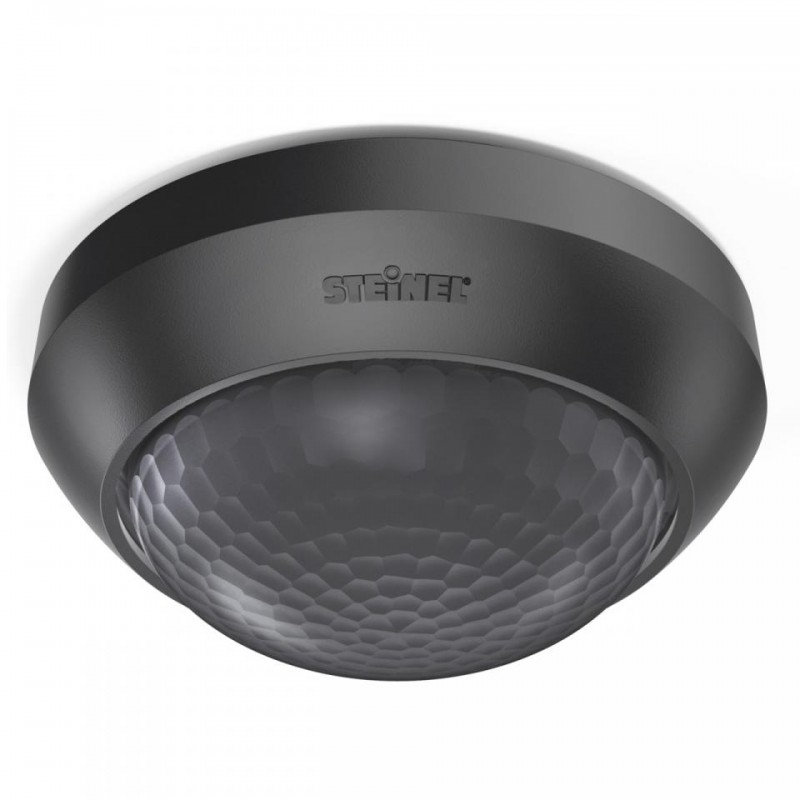

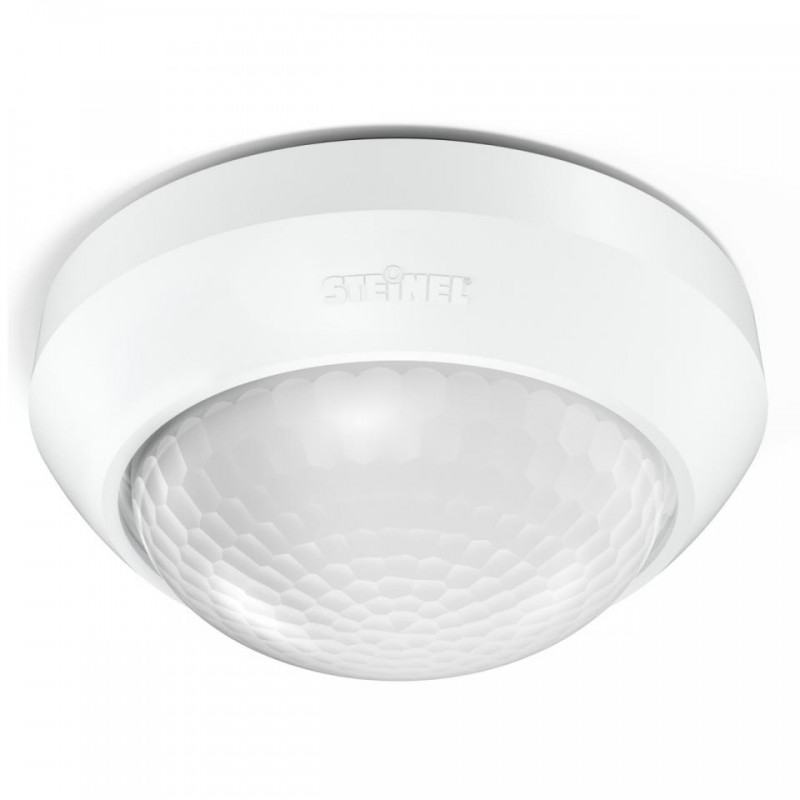

IS 360-3 liikumisandur 360º IP54 2000W Ø24m
IS 360-3 liikumisandur 360º IP54 2000W Ø24m
IS 360-3 liikumisandur 360º IP54 2000W Ø24m
IS 360-3 liikumisandur 360º IP54 2000W Ø24m

IS 360-3 liikumisandur 360º IP54 2000W Ø24m

Type: Motion detectors
Dimensions (Ø x H): 121 x 57 mm
Mains power supply: 220 – 240 V / 50 – 60 Hz
Sensor Technology: passive infrared
Application, place: Outdoors, Indoors
Installation: Surface wiring
Mounting height: 2,50 – 6,00m  optimum  2,8 m
Detection angle: 360 °
Angle of aperture: 90 °
Sneak-by guard: Yes
Capability of masking out individual segments: Yes
Reach, radial: Ø 12 m (113 m²)
Reach, tangential: Ø 24 m (452 m²)
Twilight setting: 2 – 1000 lx
Time setting: 5 s – 15 Min.
Output: 2000 W
Settings via Potentiometers
Interconnection: Yes
IP-rating: IP54
Ambient temperature: -20 – 50 °C

Failid

description IS 360-3 manual

Kood Kirjeldus KM-ta KM-ga ühik
006525
IS 360-3 MUST IR-liikumisandur pinnapealne 2000W IP54 360° 2-1000lux maxØ 24m Steinel 83,25 €
79,09 €
-5%
96,49 €
tk
006532
IS 360-3 VALGE IR-liikumisandur pinnapealne 2000W IP54 360° 2-1000lux maxØ 24m Steinel 78,87 €
74,92 €
-5%
91,41 €
tk
Kood: 006525
IS 360-3 MUST IR-liikumisandur pinnapealne 2000W IP54 360° 2-1000lux maxØ 24m Steinel
-5% KM-ta: 83,25 € 79,09 €
KM-ga: 96,49 €
tk
Kood: 006532
IS 360-3 VALGE IR-liikumisandur pinnapealne 2000W IP54 360° 2-1000lux maxØ 24m Steinel
-5% KM-ta: 78,87 € 74,92 €
KM-ga: 91,41 €
tk
