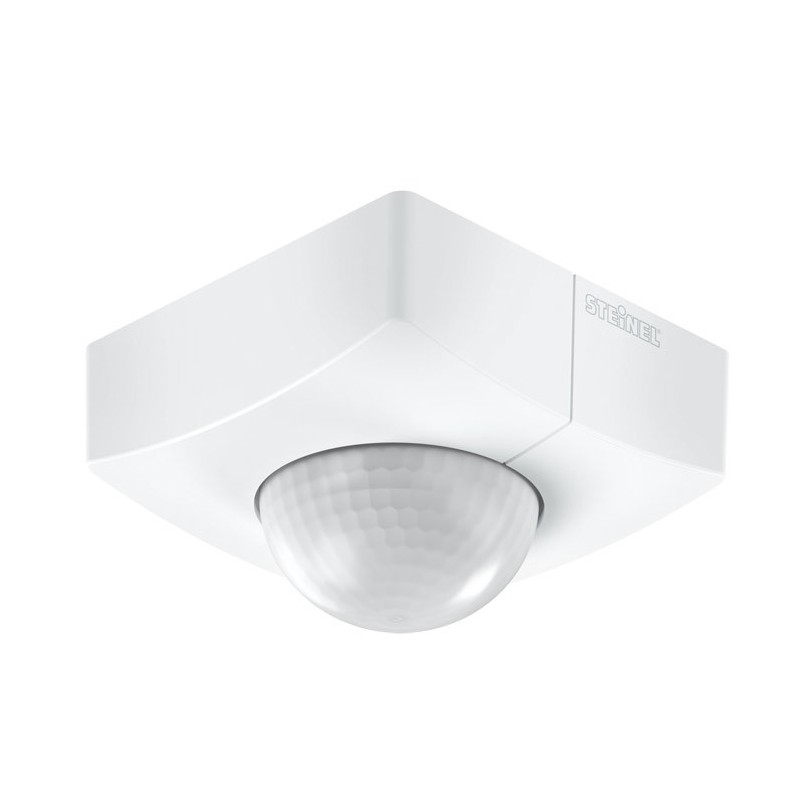

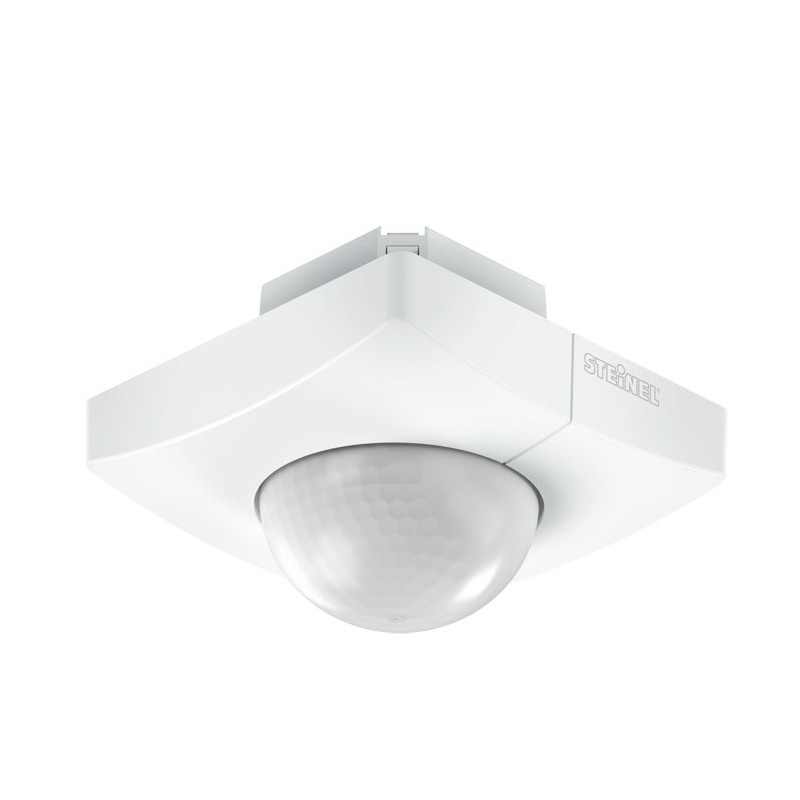

IS 345 SQ liikumisandur 360º koridor 23x6m 2000W IP54

Type: Motion detectors
Dimensions (L x W x H): 65 x 95 x 95 mm
Mains power supply: 220 – 240 V / 50 – 60 Hz
Sensor Technology: passive infrared
Application, place: Outdoors, Indoors
Application, room: corridor / aisle, multi-storey / underground car park, outdoors, Indoors
Installation: Surface wiring
Mounting height: 2,50 – 5,00 m optimum 2,8m
Detection angle: 360 °
Angle of aperture: 45 °
Sneak-by guard: Yes
Capability of masking out individual segments: Yes
Reach, radial: 12 x 6 m (72 m²)
Reach, tangential: 23 x 6 m (138 m²)
Twilight setting TEACH: Yes
Twilight setting: 2 – 1000 lx
Time setting: 5 s – 15 Min.
Output: 2000 W
Functions: Normal / test mode, Manual ON / ON-OFF
Settings via Remote control,Potentiometers,Smart Remote
Interconnection: Yes
IP-rating: IP54
Ambient temperature: -20 – 50 °C
