Dimensions: 76x120x120mm

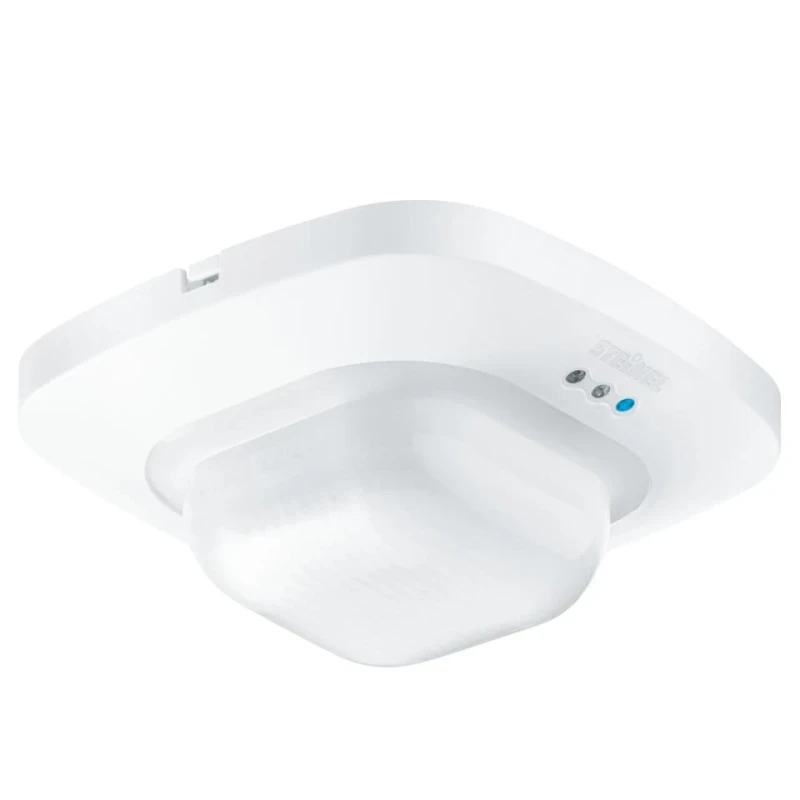

Type: Presence detector
Colour: white, RAL9010
IP-rating: IP20
Ambient temperature: 0-40°C
Mains power supply: 230V 50–60Hz
LED lamps < 2 W : 100 W
LED lamps > 2 W < 8 W : 300W
LED lamps > 8 W : 600W
Detection angle: 360°
Sensor technology: passive infrared, Light sensor
Mounting height: 2,5–8m
Sneak-by guard: Yes
Reach, radial: 5 x 5m (25m²)
Reach, tangential: 7 x 7m (49m²)
Reach, presence: 4 x 4m (16- m²)
Switching zones: 1760
Functions: Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Twilight setting: 10–1000lx
Time setting: 30s – 30Min.
