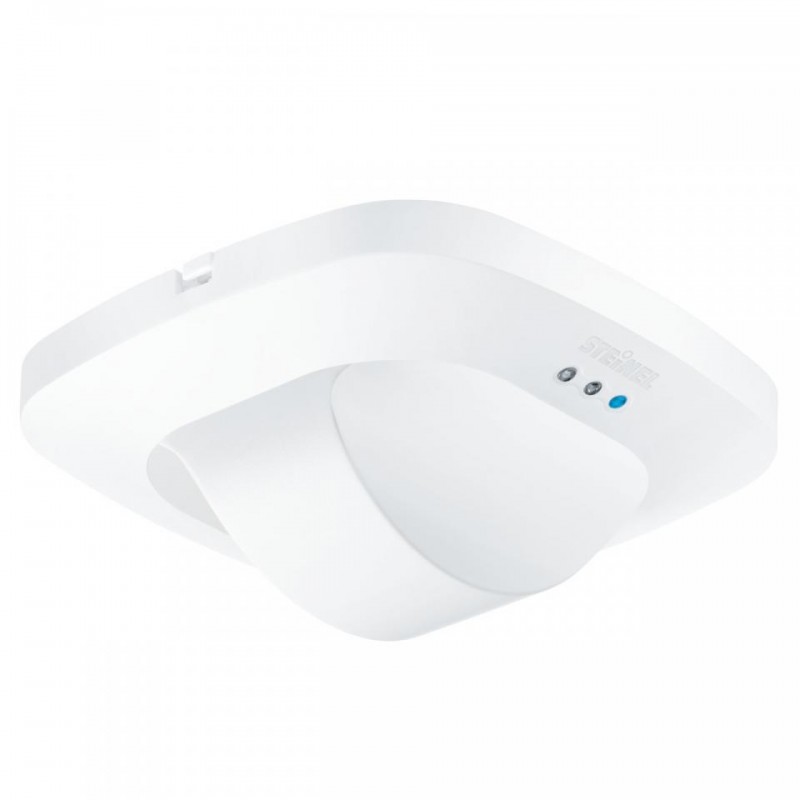

Type: Presence detector
Dimensions (LxWxH): 74x120x120mm
Application, place: Indoors
Application, room: corridor / aisle, Indoors
Settings via Remote control,DIP switches,Potentiometers,Smart Remote
Mains power supply: 230V/50–60Hz
Sensor Technology: High frequency 5,8GHz
Mounting: ceiling
Mounting height: 2,50 – 3,50 m optimum 2,8m
Detection: also through glass, wood and stud walls
Detection angle: 360 °
Angle of aperture: 140 °
Sneak-by guard: Yes
Reach, radial and tangential: 20 x 3 m (60 m²)
Twilight setting TEACH: Yes
Twilight setting: 10 – 1000 lx
Time setting: 30 s – 30 Min.
Output: 2000 W
Functions: Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
IP-rating: IP20
Housing: Plastic
Ambient temperature: -25 – 55 °C
