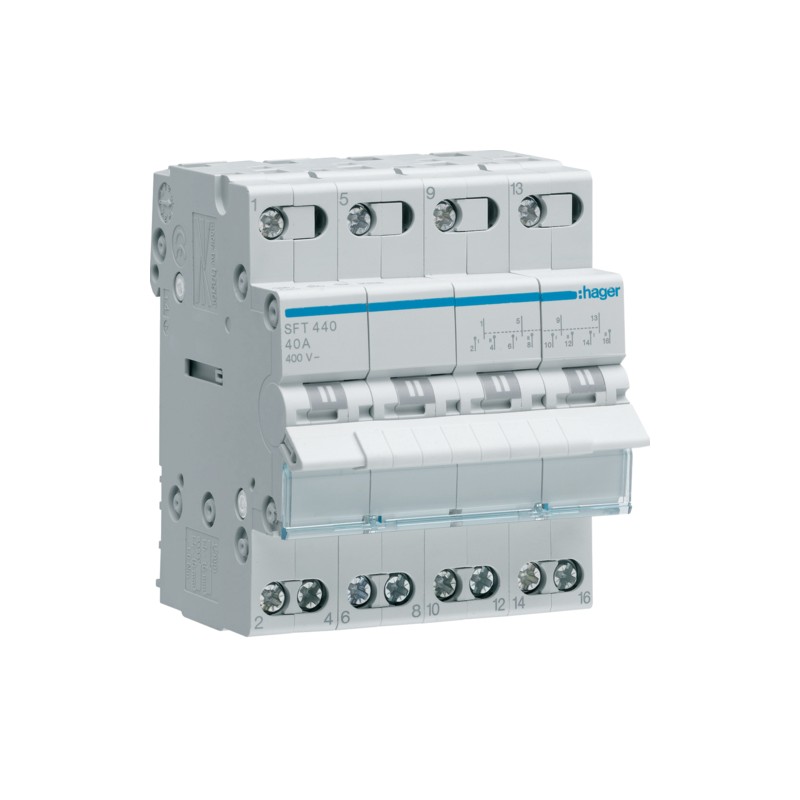

Ümberlüliti I-0-II, 4P, 40A, 230VAC, 4M (16/10mm²)

Changeover switch
Rated operational voltage Ue: 400V
Frequency: 50/60Hz
Rated insulation voltage: 440V
Rated impulse withstand voltage: 4000V
Rated current: 40A
Rated short-time withstand current 1s: 0,6kA
Thermal rated current outside of housings: 40A
Rated operational current in AC21 category A and B: 40A
Acceptable current rating with AC22 category A and B: 40A
Electrical durability at nominal load in AC21in operating cycles: 25000
Electrical durability at nominal load in AC22 in operating cycles: 25000
Number of mechanical operations: 200000
Tightening torque: 1,8Nm
Connection cross-sect. flexible conductor: 1,5 / 10mm²
Connection cross-sect. rigid cable: 1,5 / 16mm²
Type of connection: with screw
Standard text: IEC 60947-3
Protection index: IP20
Operating temperature: -20…50 °C
Degree of pollution according to IEC 60664 / IEC 60947-2: 2
Storage/transport temperature: -40…80 °C
