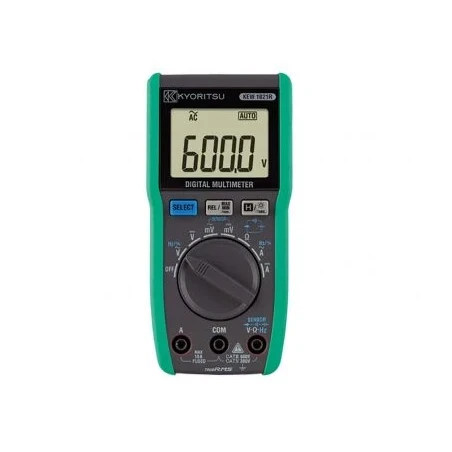

Multimeeter KEW1021R

Multimeeter KEW1021R

  • Large display with 6000 counts and Backlight
  • Enhanced current measuring function using an external clamp sensor
  • Two detachable holders, flat and wing type
  • Accurate reading with True RMS
  • Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V
  • DC V / accuracy: 6.000/60.00/600.0V (auto range); ±0.5%rdg±3dgt
  • DC mV: 600.0mV ; ±1.5%rdg|±3dgt
  • AC V: 6.000/60.00/600.0V (auto range); ±1.0%rdg±3dgt [40 - 500Hz]
  • AC mV: 600.0mV ; ±2.0%rdg±3dgt [40 - 500Hz]
  • DC A : 6.000/10.00A (auto range); ±1.5%rdg±3dgt
  • AC A : 6.000/10.00A (auto range): ±1.5%rdg±3dgt[45 - 500Hz]
  • Ω : 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range)
  • ±0.5%rdg±4dgt (600Ω),
  • ±0.5%rdg±2dgt (6/60/600kΩ/6MΩ)
  • ±1.5%rdg±3dgt (40MΩ)
  • Continuity buzzer: 600Ω (Buzzer sounds below 90Ω)
  • Diode test: 2.0V Release Voltage: Approx.
  • Capacitance: 60.00/600.0nF/6.000/60.00/600.0/1000µF
  • ±2.0%rdg±5dgt (60/600nF)
  • ±5.0%rdg±5dgt (6/60/600/1000µF)
  • Frequency : ACV 99.99/999.9Hz/9.999/99.99kHz ; ±0.1%rdg±3dgt
  • ACA 99.99/999.9Hz/9.999kHz ; ±0.1%rdg±3dgt
  • DUTY: 0.0 - 99.9% ; ±1.0%rdg±3dgt [50/60Hz]
  • Applicable standards: IEC 61010-1 CAT IV 300V / CAT III 600V
  • IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
  • Power source: R03 (1.5V) × 2
  • Dimensions: 155(L) × 75(W) × 35(D)mm
  • Weight: 250g Approx. (including batteries)
  • Accessories: Wing-type holder, Flat-type holder, 7066A (Test leads),
  • 8919 (Ceramic fuse [10A/600V]) × 1 (included),
  • 9097 (Carrying case), R03 × 2, Instruction manual
Kood Kirjeldus KM-ta KM-ga ühik
KEW1021R
 Multimeeter KEW1021R 109,74 € 136,08 € tk
Kood: KEW1021R
Multimeeter KEW1021R
KM-ta: 109,74 €
KM-ga: 136,08 €
tk
×
