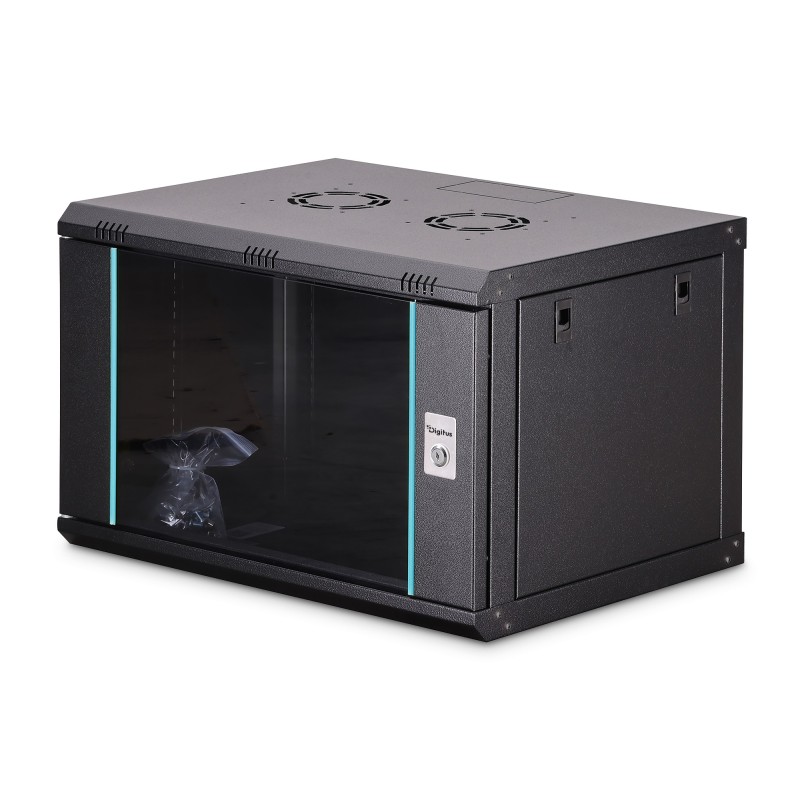

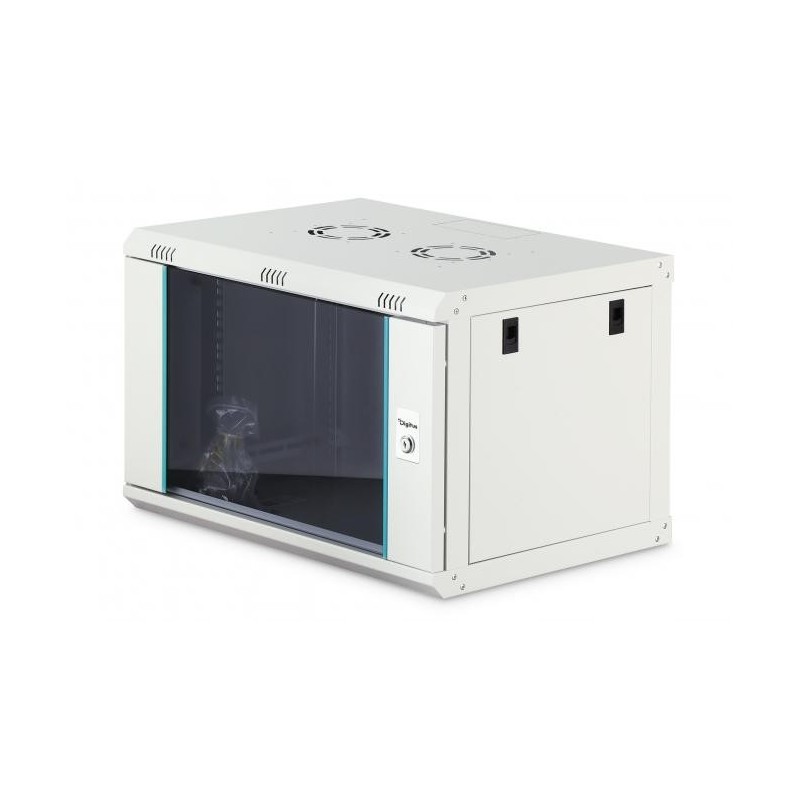

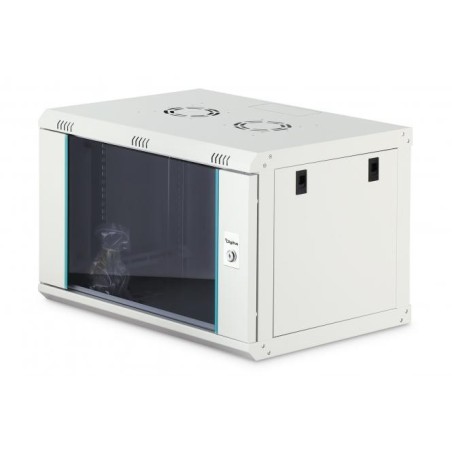

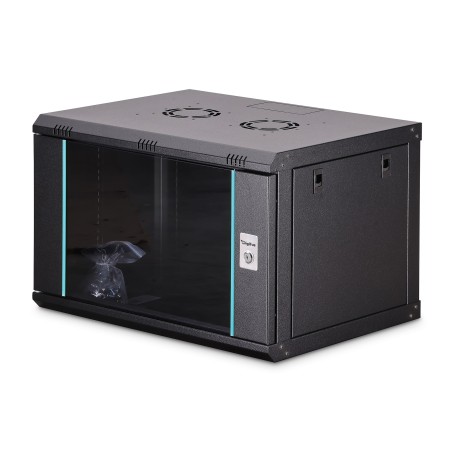

19" seinakapp 7U süg. 450mm klaasuks

Protection class IP20
Lockable safety glass door with steel frame
230° door opening angle
1-point locking on the front door
483 mm (19") profile rails at the front and rear inside the enclosure, galvanized
483 mm (19") profile rails are adjustable in depth and marked with the height unit
1.0 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated
Cable entry possible at the rear, roof and base (pre-punched cut-outs)
Roof is prepared to accommodate a fan element (punched-out mounts)
Ventilation slots for active and passive ventilation
4 earthing points (base, side panel and front door) with protective cap
Installation depth for components (standard maximum): 219 - 320 mm

Kood	Kirjeldus		KM-ta	KM-ga	ühik
DN-37100	19" seinakapp 7U süg. 450mm klaasuks hall Digitus		106,45 € 95,81 €	-10% 118,80 €	tk
DN-37101	19" seinakapp 7U süg. 450mm klaasuks must Digitus		106,45 € 95,81 €	-10% 118,80 €	tk

Kood: DN-37100

19" seinakapp 7U süg. 450mm klaasuks hall Digitus

-10% KM-ta: 106,45 € 95,81 €
KM-ga: 118,80 €

Kood: DN-37101

19" seinakapp 7U süg. 450mm klaasuks must Digitus

-10% KM-ta: 106,45 € 95,81 €
KM-ga: 118,80 €
