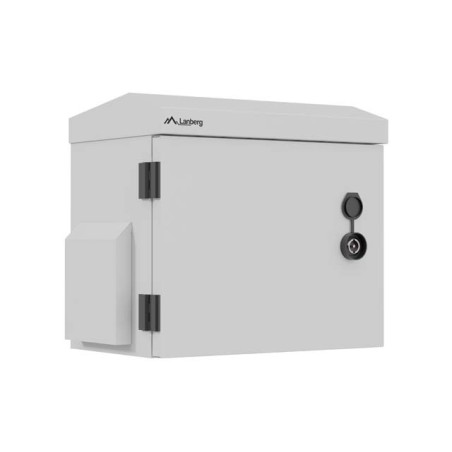

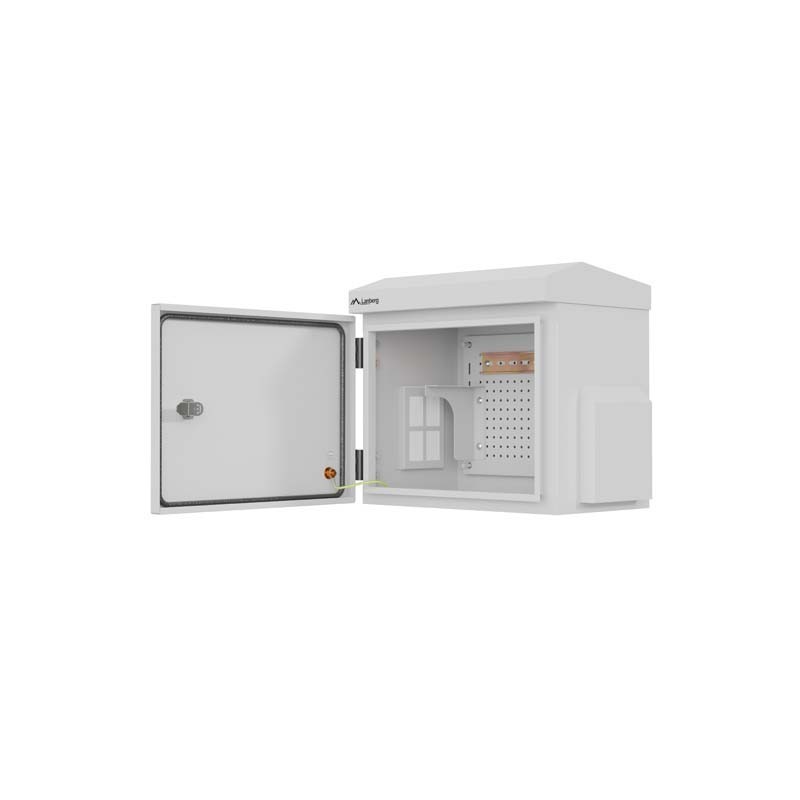

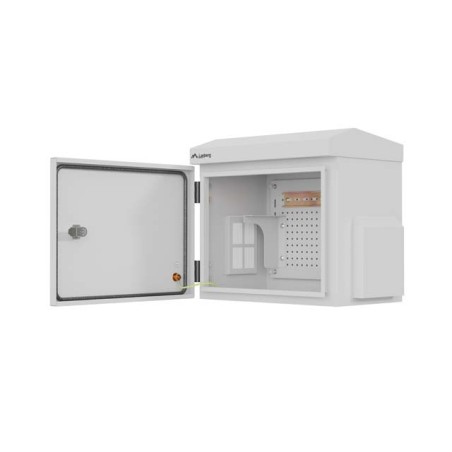

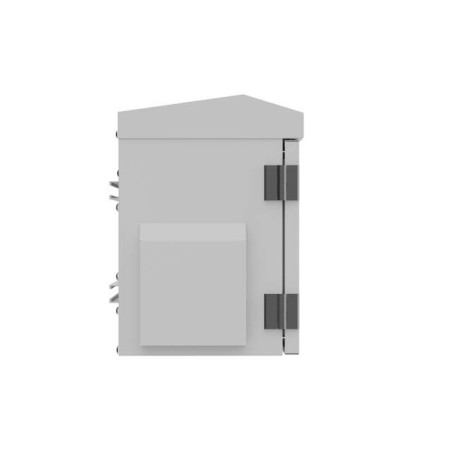

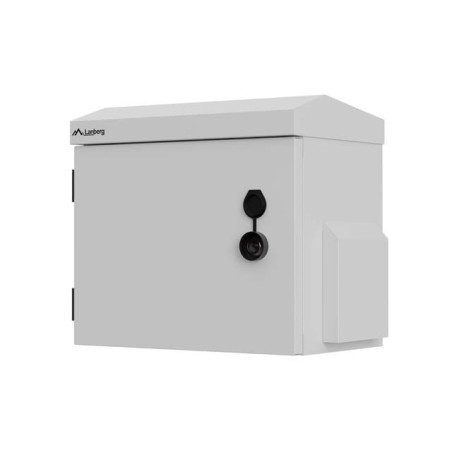

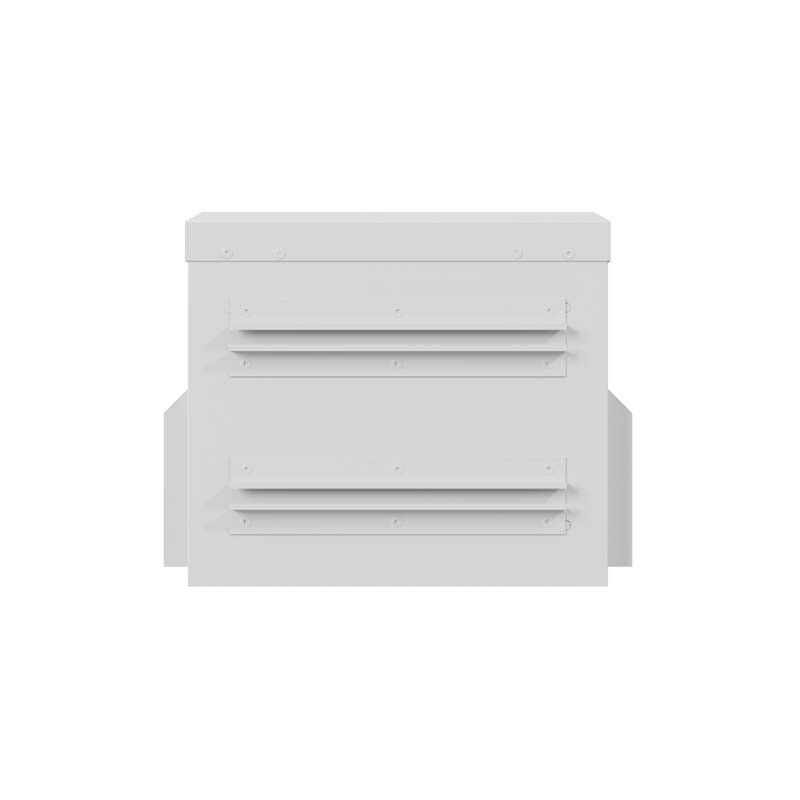

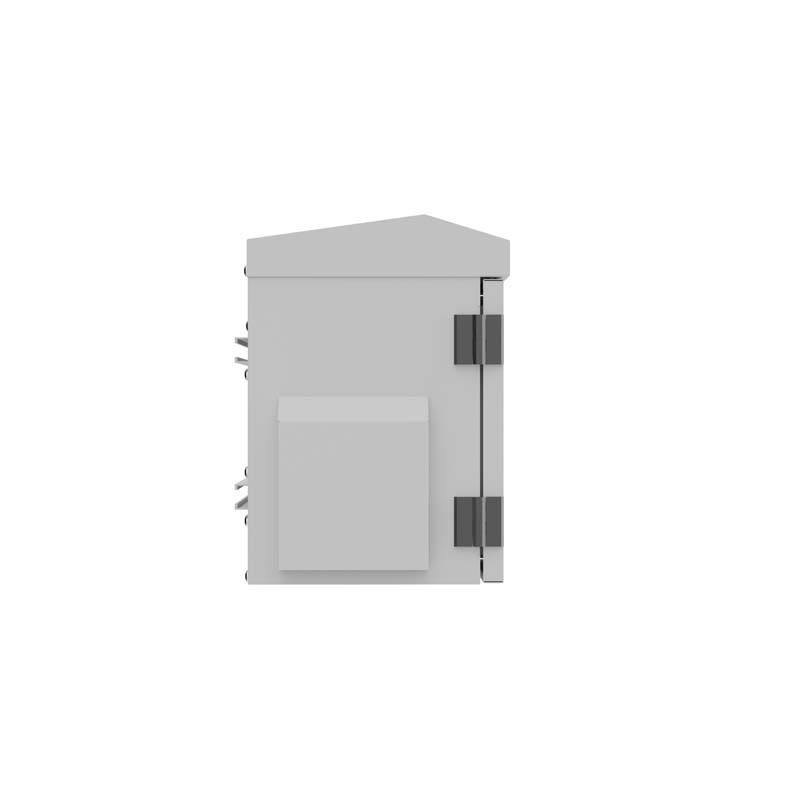

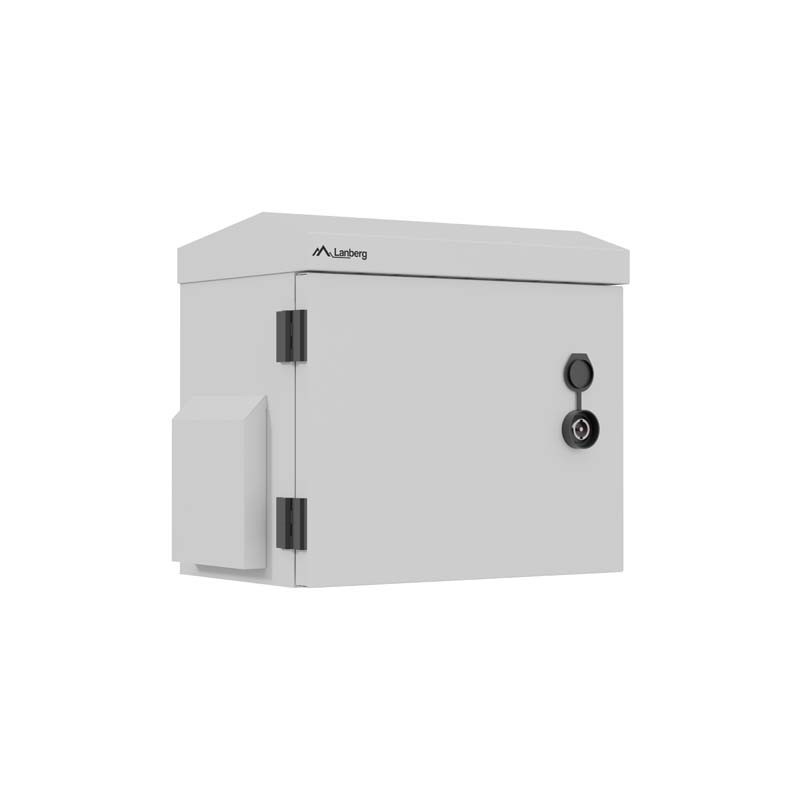

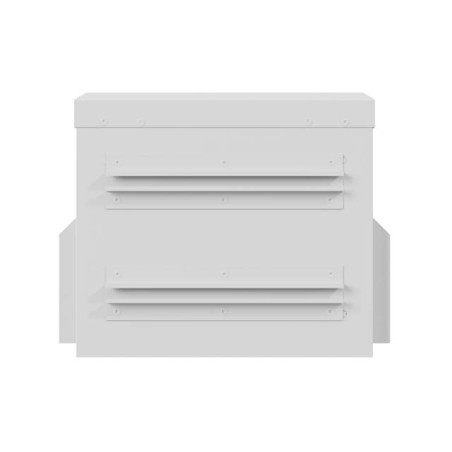

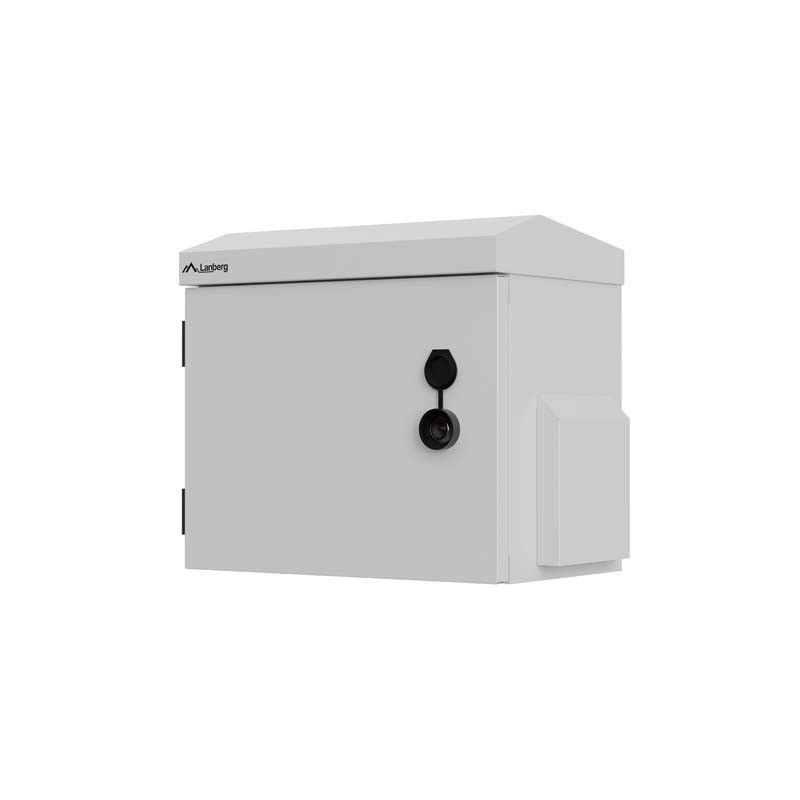

Seinakapp 10" 3U metalluks hall 320X220X300 IP55

Type of cabinet Wall mount
Size 10"
ICT depth 3 U
Assembly type Assembled
Working depth 200 mm
Mounting depth range 10 - 200 mm
Working height 250 mm
Front door type Metal
Door type Single-leaf
Material Galvanized steel, Stainless steel (AISI 304)
Maximum front door opening angle 180 °
Maximum static load 50 kg
Slot amount for fans 1
Number of horizontal rails 2
Colour Gray
RAL color RAL7035
Weatherproof rating IP55
Impact resistance rating (IK) IK10
Front door thickness 1 mm
Upper & lower panel thickness 1.2 mm
Side panel thickness 1.2 mm
Mounting rails thickness 1 mm
Frame thickness 1.2 mm
Other elements sheet thickness 1 mm
Depth 220 mm
Width 320 mm
Height 300 mm
Weight 11.3 kg
Standard ANSI/EIA RS-310-D, IEC297-2:1982, DIN 41491/PART 1, DIN 41494/PART 7, ETSI

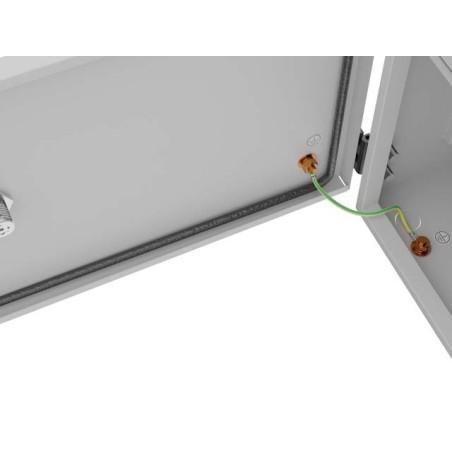

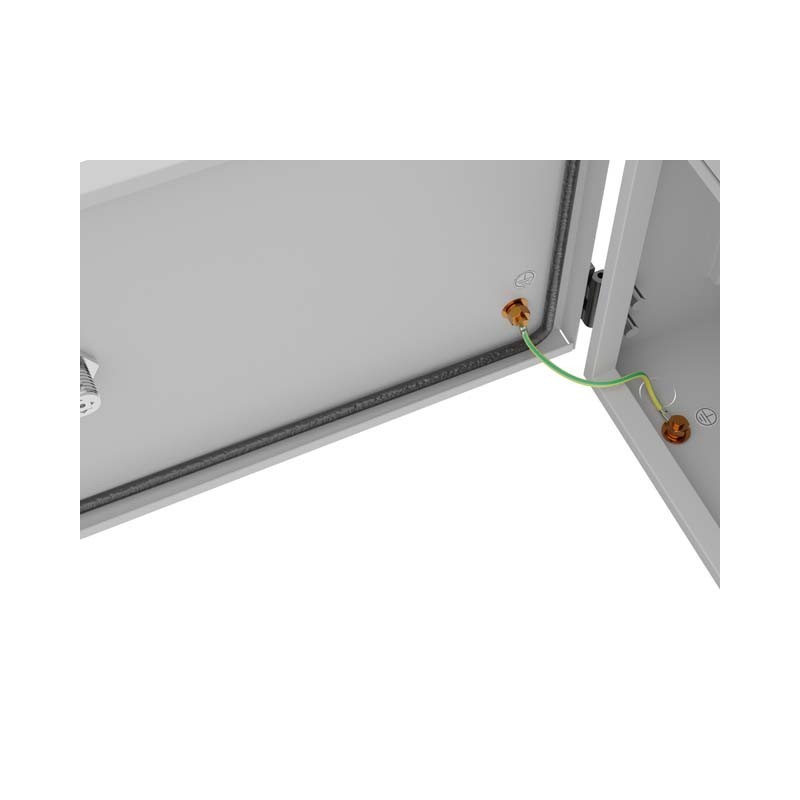

Grounding Details Front door, Bottom panel
Included Accessories M6 screws, Grounding cable, U-profile RACK brackets, Perforated (mesh) sheet, PG9 cable glands, PG13.5 cable glands, Accessories for wall and pole mounting

Kood	Kirjeldus		KM-ta	KM-ga	ühik
WAH1-3230-00S	Seinakapp 10" 3U metalluks hall 320X220X300 IP55 Lanberg		62,90 € 56,61 €	-10% 70,20 €	tk

Kood: WAH1-3230-00S

Seinakapp 10" 3U metalluks hall 320X220X300 IP55 Lanberg

-10% KM-ta: 62,90 € 56,61 €
KM-ga: 70,20 €
