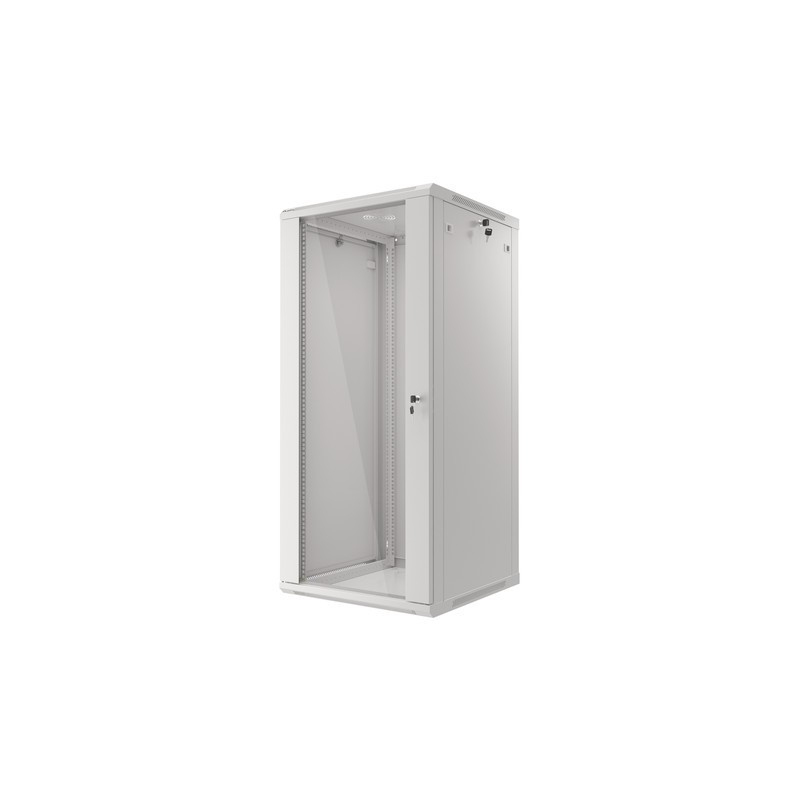

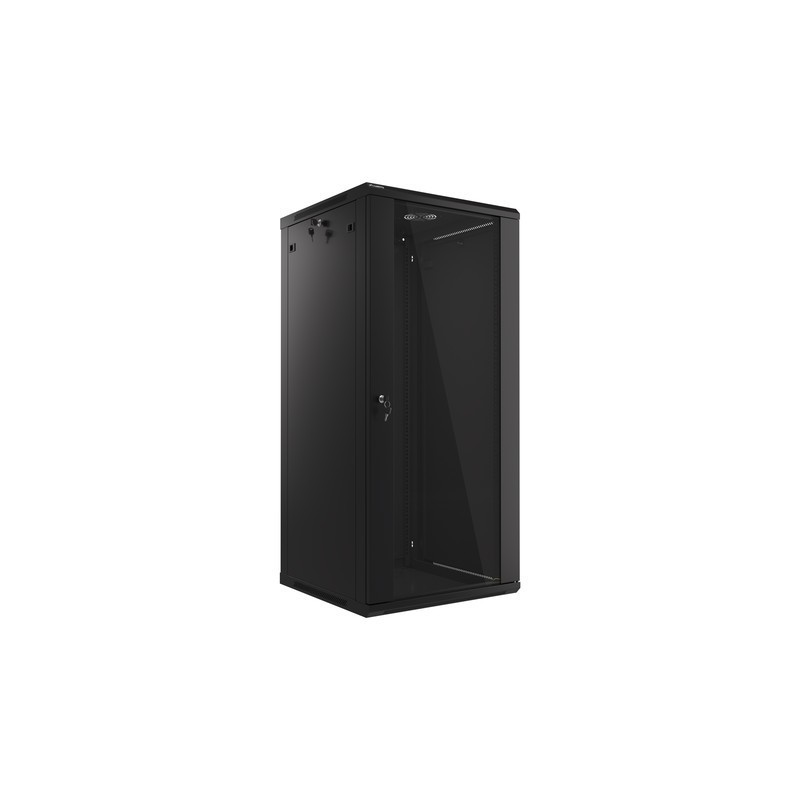

Seinakapp 19" 27U 600x600mm klaasuks

- Cabinet type: Wall mount,

- Body color: Grey RAL7035/ Black RAL9004

- Height: 27U,

- Cabinet dimensions (W x D x H): 600x600x1307 mm,

- Height (top panel - bottom panel): 1300 mm,

- Height (top panel - ground including screws): 1307 mm,

- Packaging dimensions (W x D x H): 62x131x18 cm,

- Internal width spacing between rack rails: 450 mm,

- Width of the spacing between holes of rack rails: 475 mm,

- External width spacing between rack rails: 500 mm,

- Maximum mounting depth: 529.5 mm,

- Loading capacity: max. 60 KG,

- Degree of protection: IP20,

- Doors type: Temper glass,

- Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI,

- Material: High grade cold rolled steel, powder coated,

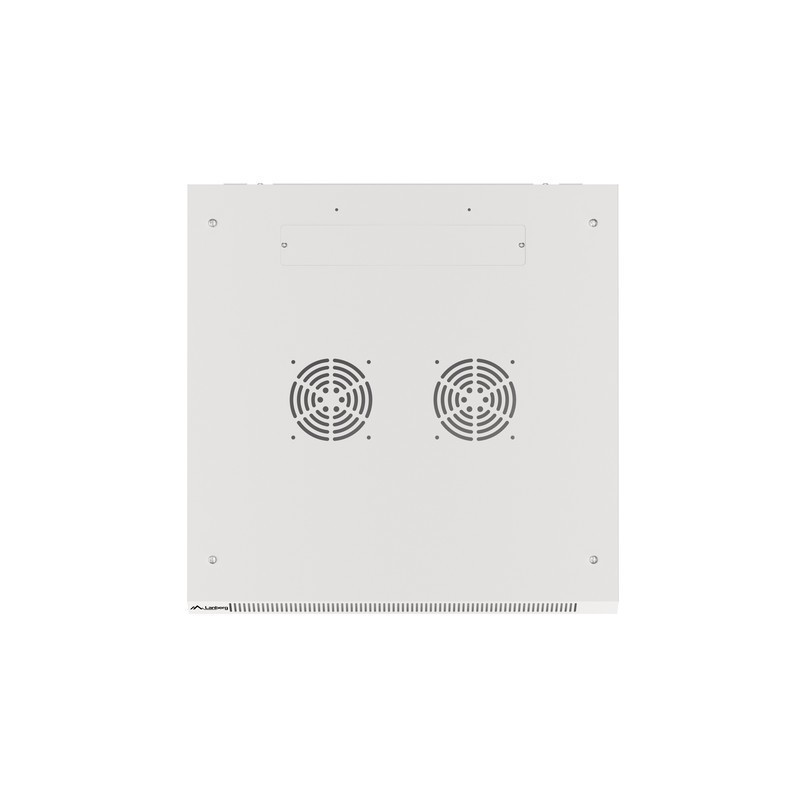

- Fan mounting slots: Yes, 120mm, 110V or 230V,

- Glass thickness: 5.0 mm,

- Sheet thickness: vertical mounting rails - 1,50 mm; mounting profile - 1,50 mm; others - 1,20 mm; top & bottom & side panel - 1,00 mm,

- Cable entry panel: Top, Bottom,

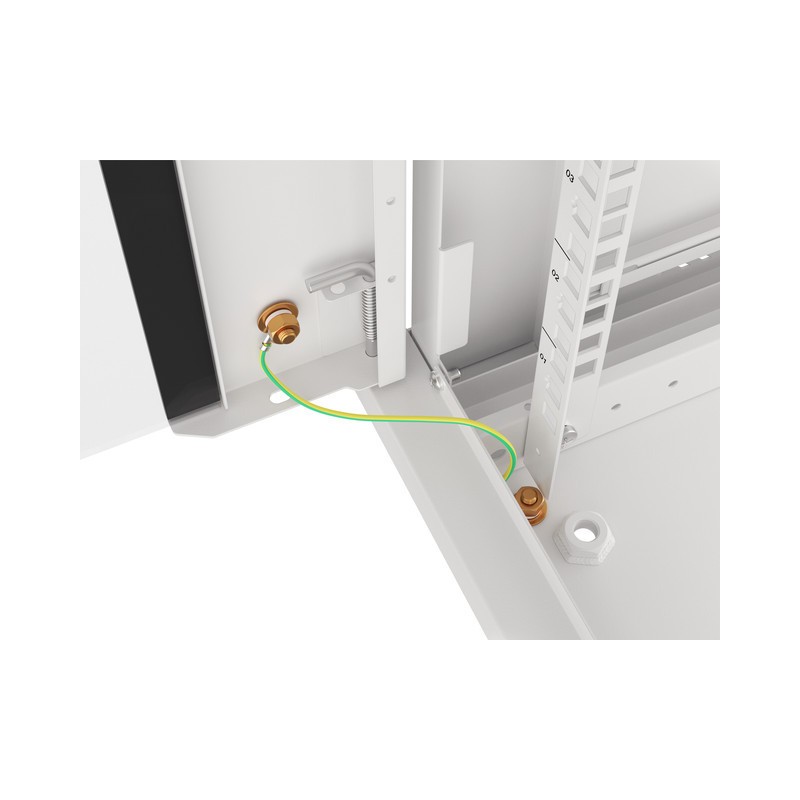

- Included: Accessory bag, earth kit, front door lock, two side panels with locks, 10 cage nuts M6.
