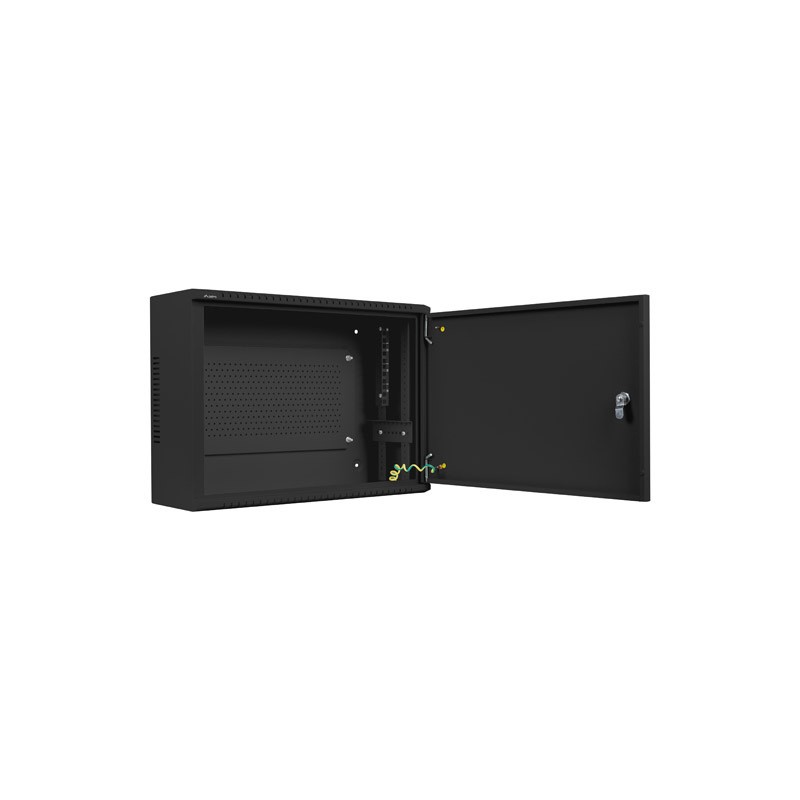

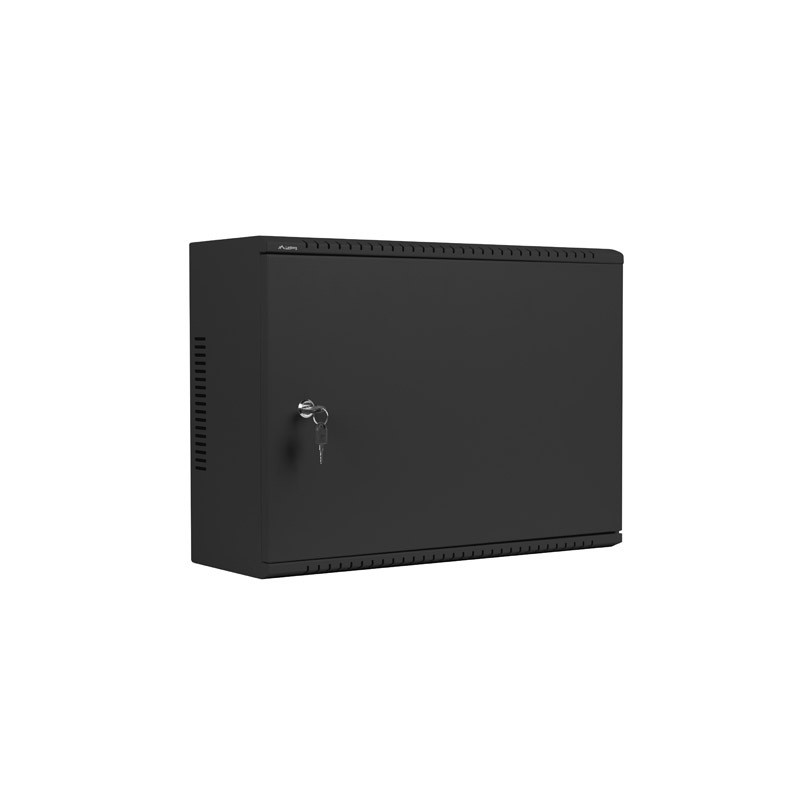

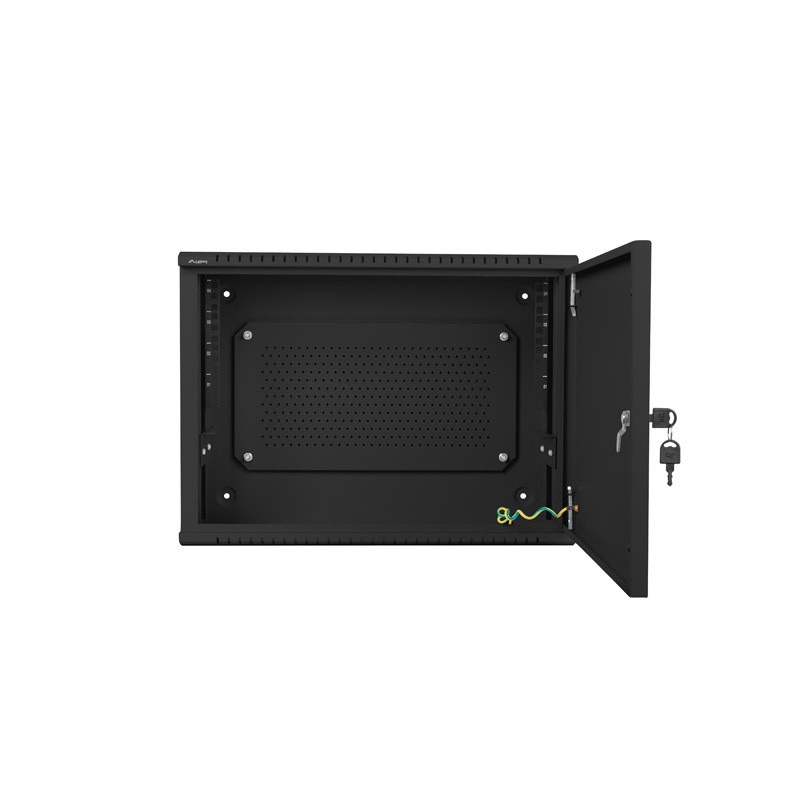

Seinakapp 19" 4U+3U/540x200mm

Width 540mm
Height 400mm
Colour Black
Standard IEC297-2:1982, ETSI, DIN 41494/PART 7, DIN 41491/PART 1, ANSI/EIA RS-310-D
Size 19"
Type of cabinet Wall mount
ICT height 4U
Depth 200mm
Maximum static load 60kg
Front door thickness 1mm
Upper & lower panel thickness 1mm
Front door type Metal

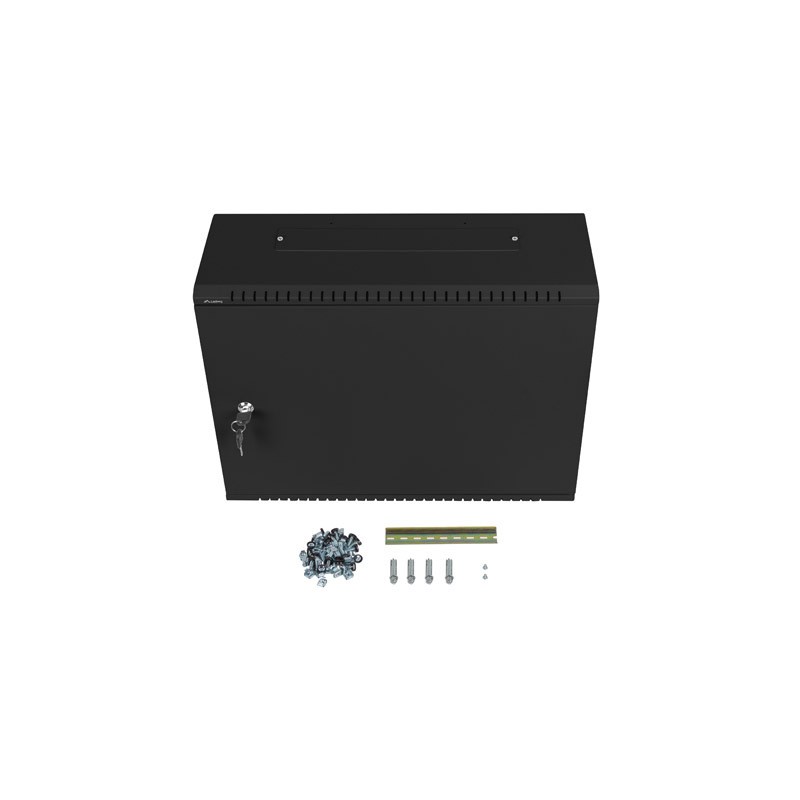

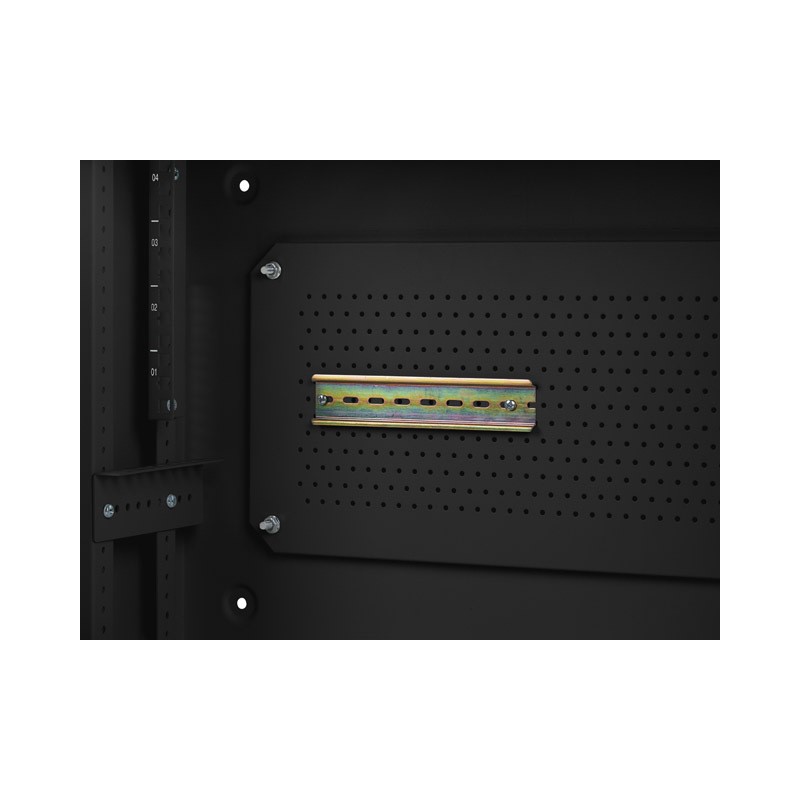

Included Accessories Front lock, M6 screws, DIN rail TS-35, Grounding cable, User Manual
Weight 9.3kg
Working depth 143mm
Side panel thickness 1mm
Mounting rails thickness 1.5mm
Other elements sheet thickness 1mm
Weatherproof rating IP20
Assembly type Assembled
Number of vertical rails 2
Thermostat No
LCD panel No
Frame thickness 1.2mm
RAL color RAL9004
Grounding Details Bottom panel, Front door
Door type Single-leaf
Maximum front door opening angle 220°
ICT depth 3U
Number of horizontal rails 2
Working height 360mm

Kood	Kirjeldus		KM-ta	KM-ga	ühik
WAF1-5203-04-00B	Seinakapp 19" 4U+3U/540x200mm must Lanberg		56,35 € 50,72 €	-10% 62,89 €	tk
WAF1-5203-04-00S	Seinakapp 19" 4U+3U/540x200mm hall Lanberg		56,35 € 50,72 €	-10% 62,89 €	tk
