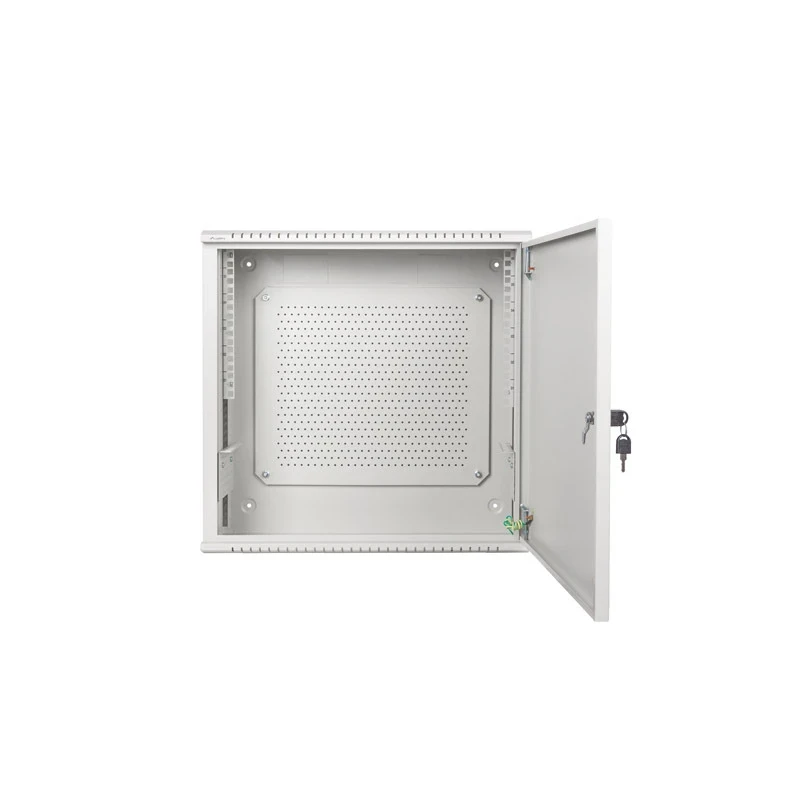

Seinakapp 19" 6U+3U/540x200mm

Type of cabinet Wall mount
ICT depth 3 U
Size 19"
ICT height 6 U
Assembly type Assembled
Working depth 143 mm
Working height 500 mm
Front door type Metal
Door type Single-leaf
Maximum front door opening angle 220 °
Maximum static load 60 kg
Number of vertical rails 2
Number of horizontal rails 2
Weatherproof rating IP20
Front door thickness 1 mm
Upper & lower panel thickness 1 mm
Side panel thickness 1 mm
Mounting rails thickness 1.5 mm
Frame thickness 1.2 mm
Other elements sheet thickness 1 mm
Depth 200 mm
Width 540 mm
Height 540 mm
Weight 11 kg
Standard ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Grounding Details Bottom panel, Front door

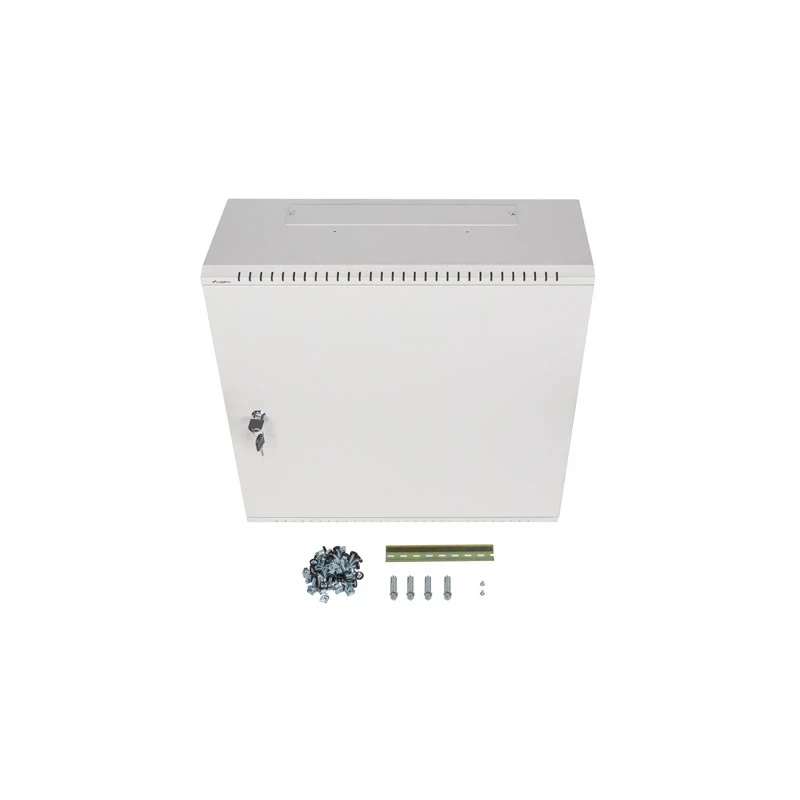

Included Accessories DIN rail TS-35, Front lock, Grounding cable, M6 screws, User Manual

Kood	Kirjeldus		KM-ta	KM-ga	ühik

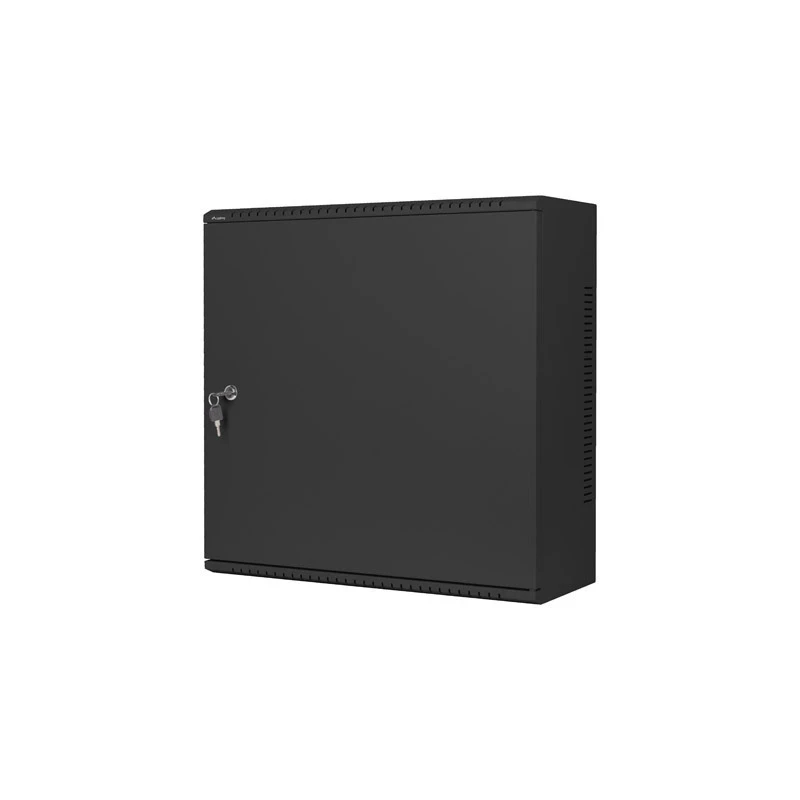

WAF1-5203-06-00B	Seinakapp 19" 6U+3U/540x200mm must Lanberg		56,36 € 50,72 €	-10% 62,89 €	tk

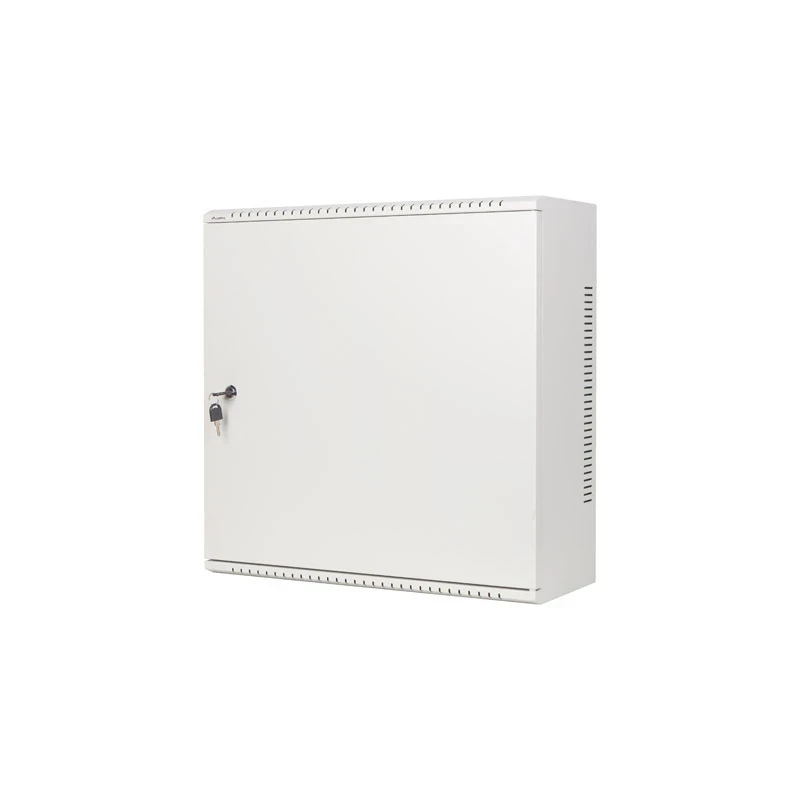

WAF1-5203-06-00S	Seinakapp 19" 6U+3U/540x200mm hall Lanberg		56,36 € 50,72 €	-10% 62,89 €	tk
