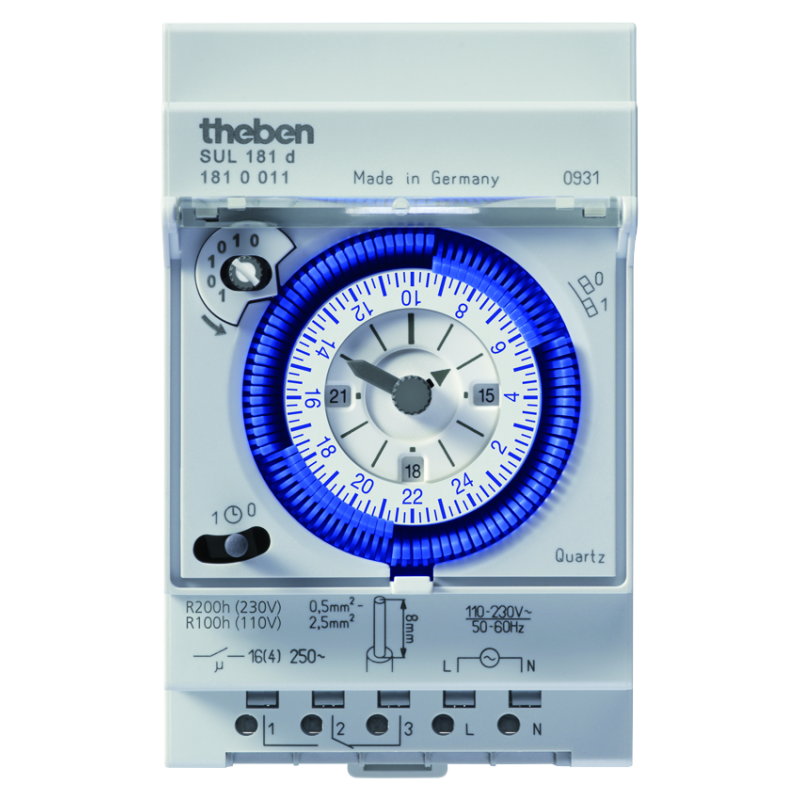

Mehaaniline programmkell 24h käigureserv 200h 16A

Function description

• Analogue time switch
• 1 channel
• Daily program
• With power reserve (NiMH rechargeable battery)
• 96 switching segments
• Quartz controlled
• Shortest switching time: 15 minutes
• Clock hands for time display and in addition 12/24 hour recognition
• Simple summer/winter time correction
• Time can be changed clockwise or anti-clockwise
• DuoFix spring terminals
• For 2 conductors each
• Wire or strand (with or without wire end sleeve)
• Wire diameter: 0.5 - 2.5 mm²
• Button for releasing plug-in connection
• Switching preselection
• Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF
• Switching status display
