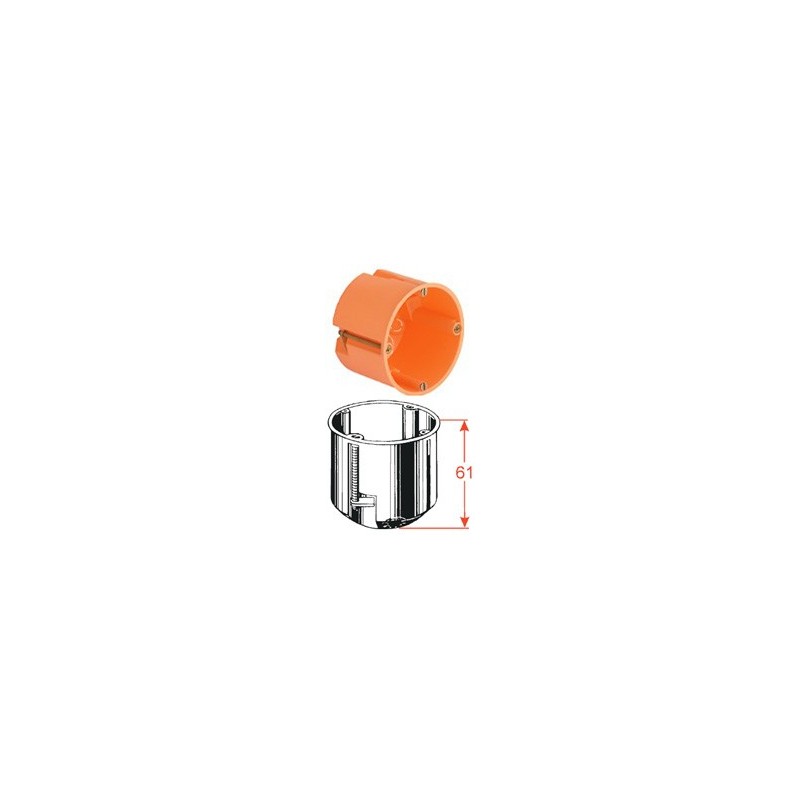

9064-32 kipsplaadi toos Ø68mm h61mm

One gang junction box
cutting hole Ø 68 mm
for plate thickness 7 - 35 mm
mounting screws distance 60 mm
4 entries for 20 mm Ø DIN EN conduits
4 wiring entries 3 x 1,5²
2 wiring entries 5 x 1,5²
2 wiring entries for low voltages
with 7 support connectors for 25-unit package
with holding ring
fireproof up to 850° C to VDE 0606 norm
protection class IP 3X
dimensions to DIN standard
normed combination distance 71 mm
automatic fully insulated through wiring in combinations of boxes and junction boxes for switches and sockets possible
automatic strain relief of sheathed cables, self-clamping of conduits
can also be used as junction boxes with screwed down cover to DIN VDE 0606 norm
