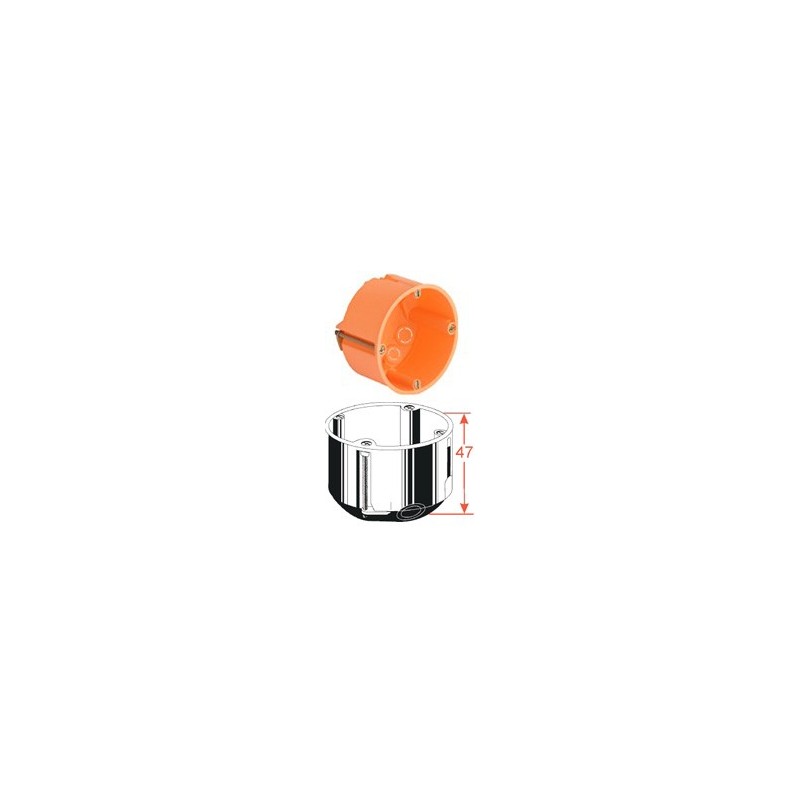

9063-32 kipsplaadi toos Ø68mm h47mm

One gang box

• cutting hole Ø 68 mm
• for plate thickness 7 - 35 mm
• mounting screws distance 60 mm
• 2 entries for 20 mm Ø DIN EN conduits
• 2 off each wiring entries 3 x 1.5², 5 x 1.5²
• 2 wiring entries for low voltages
• with holding ring
• fireproof up to 850° C to VDE 0606 norm
• protection class IP 3X
• dimensions to DIN standard
• normed combination distance 71 mm
• automatic fully insulated through wiring in combinations of boxes and junction boxes for switches and sockets possible
• break-out openings for sheathed cabling, low voltage wires and DIN EN conduits
• automatic strain relief of sheathed cables, self-clamping of conduits
