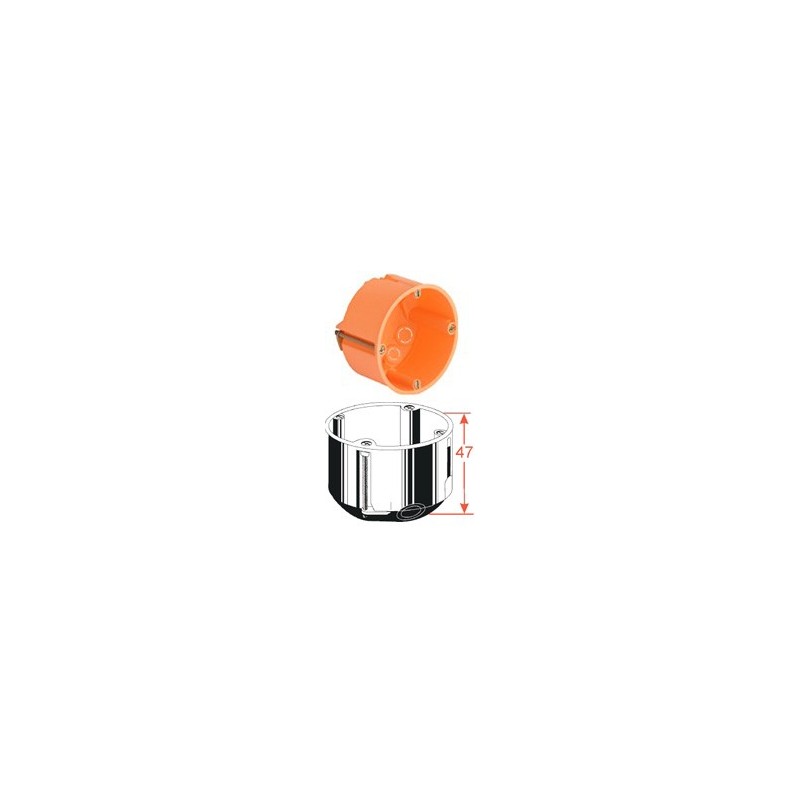

Kipsplaadi toos Ø68mm h47mm

One gang box
cutting hole: Ø 68 mm
for plate thickness: 7 - 35 mm
mounting screws distance: 60 mm
2 entries for 20 mm Ø DIN EN conduits
2 off each wiring entries 3 x 1.5², 5 x 1.5²
2 wiring entries for low voltages with holding ring
fireproof: up to 850° C to VDE 0606 norm
protection class: IP 3X
dimensions to DIN standard
normed combination distance 71 mm
automatic fully insulated through wiring in combinations of boxes and junction boxes for switches and sockets possible
break-out openings for sheathed cabling, low voltage wires and DIN EN conduits
automatic strain relief of sheathed cables, self-clamping of conduits
