9063-50 Valgustitoos Ø68mm h45mm

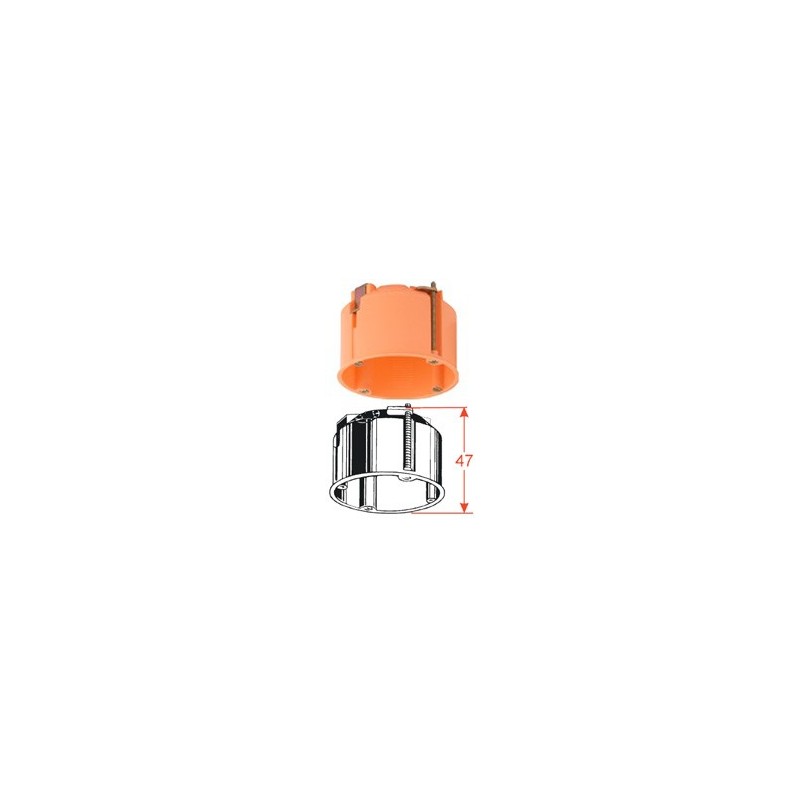

Ceiling light connection box

• cut hole Ø 68 mm
• with holding ring
• for plate thickness 7- 35 mm

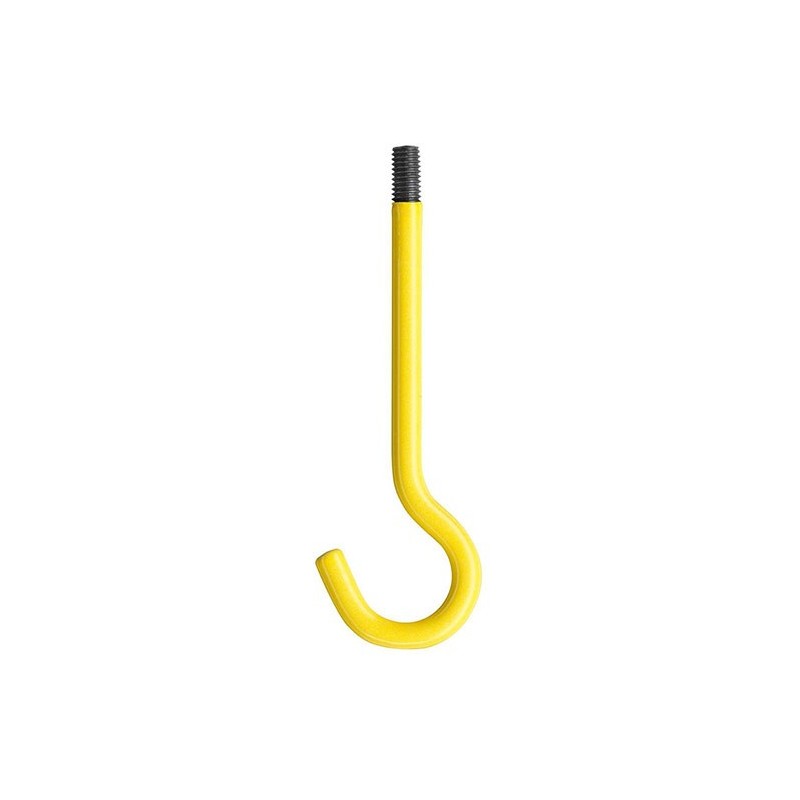

• with M5 metal thread for light hooks min. length 55 mm
• max. load 20 N (2 Kp)
• Attention! Always screw in light hook fully
• also be used as ceiling light junction boxA
• cover screws distance 60 mm
• 2 entries for 20 mm Ø DIN EN conduits
• 2 off each wiring entries 3 x 1,5², 5 x 1,5²
• fireproof up to 850° C to VDE 0606 norm
• for universal VDE cover 1184-90
