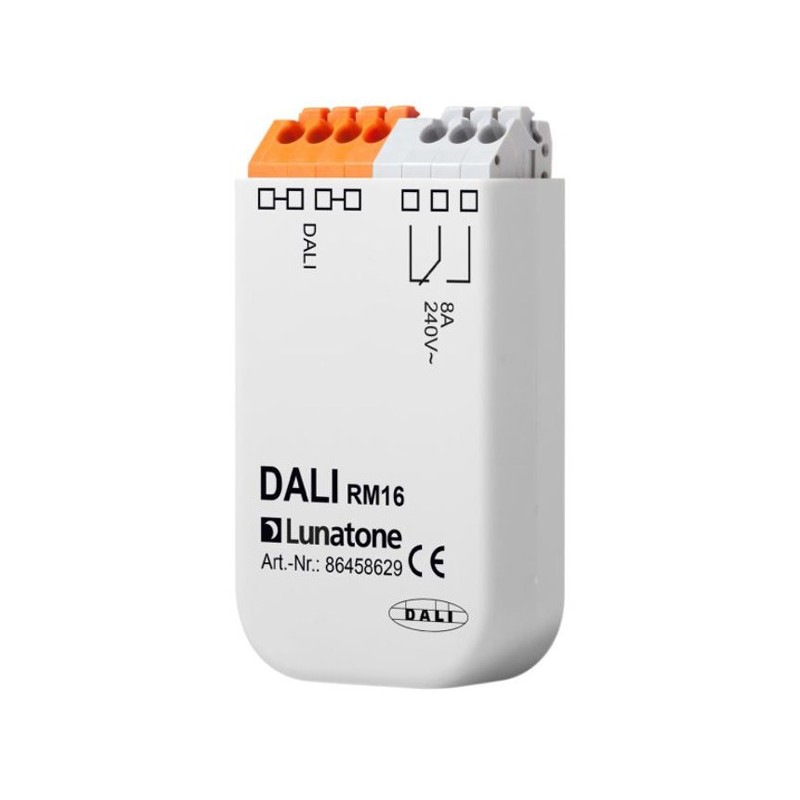

Compact relay module for the direct control of 230V AC loads via DALI
DALI-2 certified variants available: art.nr. 86456944- and art. nr.86456203 -_
Ballasts without DALI-input can be simply integrated in a DALI lighting control system. The loads can then be switched ON and OFF by DALI commands.
The DALI RM8/16 module fulfills the requirements for DALI Device Type 7 - switching function (firmware 2.0 and higher)
Configurable Power-Up and SystemFailure behaviour
Free DALI-Cockpit software package for configuration of DALI-systems and Lunatone DALI components
The RM 8/16 is supplied directly by the DALI signal line
Zero cross switching
 RM16-HS (art. nr.: 86458629-HS, 86456203-HS) and RM16-DE (art. nr.: 86458629-DE, 86456203-DE): integrated current limiter, suitable for loads with high inrush current (>100A)
The DALI RM 8/16 module acts like any conventional DALI ballast, and can be addressed and configured accordingly.
