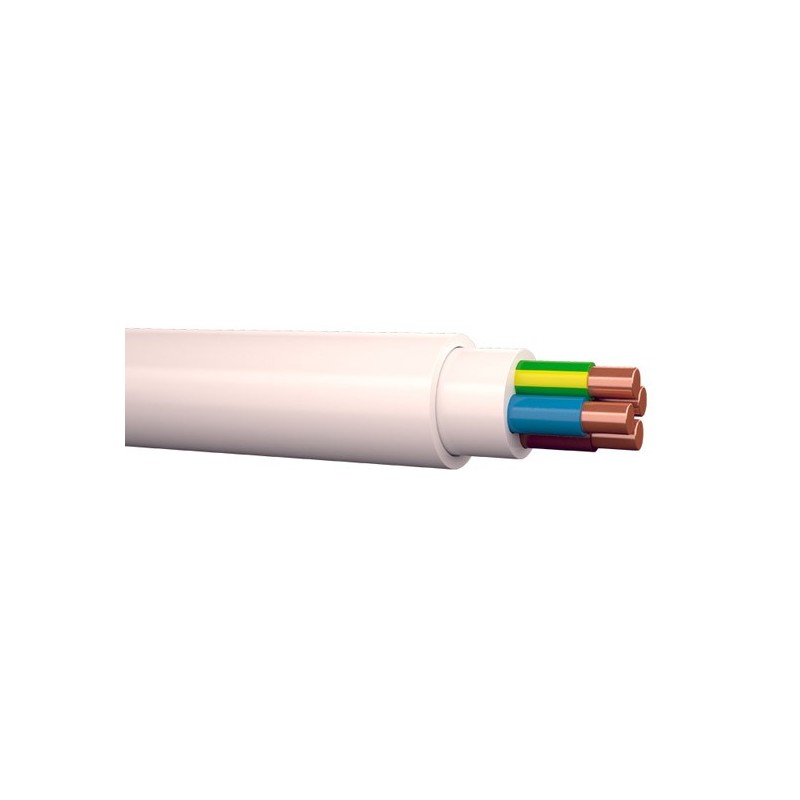

XPJ-HF Dca halogeenivaba kaabel

Application Halogen free and flame retardant cable. Smoke generation in the event of fire is small, transparent (to facilitate evacuation) and not harmful to electronic equipment. For fixed surface or flush-mounted installations, indoors and outdoors. Suitable for installation in a slot covered with plaster. Not for installation directly in ground or directly in concrete without protective ducting. Cable needs protection from direct sunlight. Core insulation should be protected from direct UV radiation, which may occur inside lighting for example.

Standard
SS 424 02 19-5: Construction standard
IEC 61034: Smoke density
EN 50267-2-2: Corrosive gases
IEC 60332-1-2 Vertical flame propagation for a single insulated wire or cable
IEC 60332-3
HD 60364-5-52: Selection and erection of electrical equipment. Wiring systems.

Construction
Cable Shape: Round
Conductors Solid Conductor Insulation XLPE
Marking of cores
Color Outer Sheath White halogen free polymer
Temperature
Maximum operating Temperature 70
Temparatures at installation [°C] -15°C

Fails

XPJ-HF-D-300-500V tooteleht

XPJ-HF sertifikaat

Code	Description	Price	Price+VAT	Unit
XPJ-HF-2X1.5	XPJ-HF Dca 2X1,5mm² kaabel halogeenivaba R100M	€1.14 €0.91	-20% €1.11	m
XPJ-HF-3G1.5	XPJ-HF Dca 3G1,5mm² kaabel halogeenivaba R100M	€1.16 €0.92	-20% €1.13	m
XPJ-HF-3G2.5	XPJ-HF Dca 3G2,5mm² kaabel halogeenivaba R100M	€1.75 €1.40	-20% €1.71	m
XPJ-HF-3X1.5	XPJ-HF Dca 3X1,5mm² kaabel koro-ta halogeenivaba R100M	€1.28 €1.02	-20% €1.25	m
XPJ-HF-4G1.5	XPJ-HF Dca 4G1,5mm² kaabel halogeenivaba R100M	€1.94 €1.55	-20% €1.90	m
XPJ-HFC-Pro_4G2.5	XPJ-HF Dca/ CCA 4G2,5mm² kaabel halogeenivaba R100M	€3.45 €2.76	-20% €3.37	m
XPJ-HF-5G1.5	XPJ-HF Dca 5G1,5mm² kaabel halogeenivaba R100M	€2.00 €1.60	-20% €1.95	m
XPJ-HF-5G2.5	XPJ-HF Dca 5G2,5mm² kaabel halogeenivaba R100M	€2.80 €2.24	-20% €2.73	m
