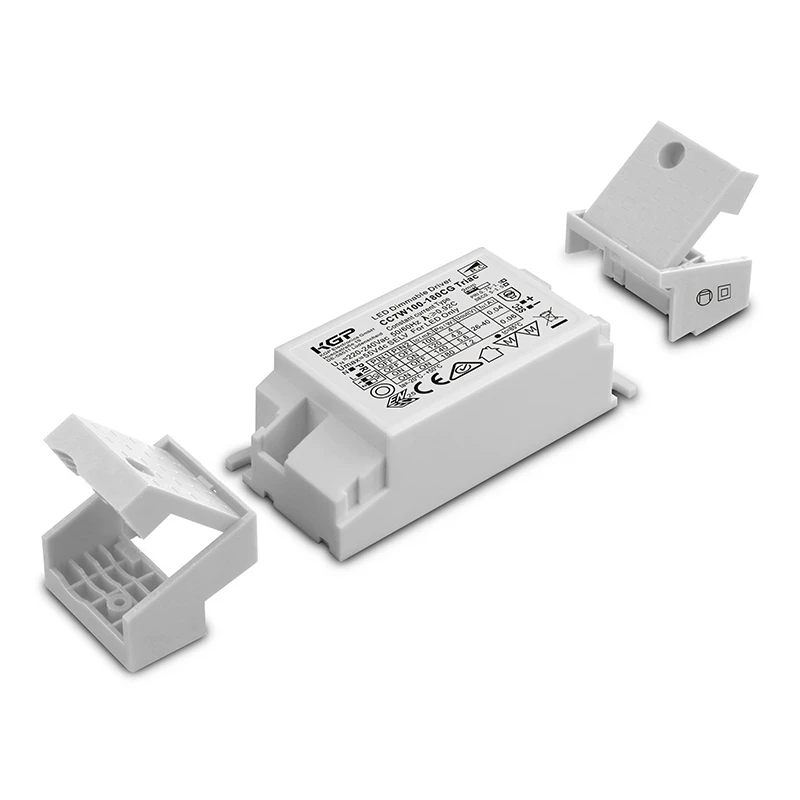

Led Driver 10W ConstantCurrent Triac dimmable
Led Driver 10W ConstantCurrent Triac dimmable
Led Driver 10W ConstantCurrent Triac dimmable
Led Driver 10W ConstantCurrent Triac dimmable

Led Driver 10W ConstantCurrent Triac dimmable

Input Voltage 220 – 240V
Frequency 50 – 60 Hz
Power Factor 0.92
Current Ripple ± 5%
Constant Current LED Driver, Triac dimmable, Leading & Trailing edge
Output Current adjustable via DIP-SWITCH
180mA, 200mA, 250mA, 280mA
200mA, 250mA, 300mA, 350mA
350mA, 400mA, 450mA, 500mA
up to 82% Efficiency
Lifetime 50.000h
IP grade IP20
Insulation Class II

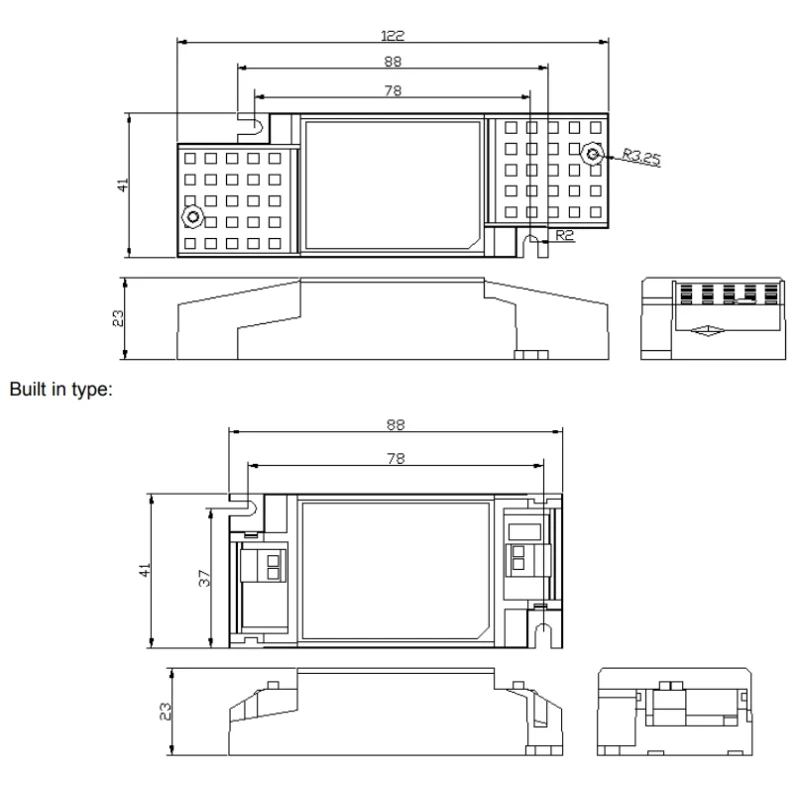

Housing with removable cord grip - 125 x 41 x 23mm
Overload Protection, Short Circuit Protection, Open Circuit Protection, Overheat Protection
SELV

Product description
Independent dimmable LED Driver
Constant current LED Driver
Dimmable via leading edge and trailing edge phase dimmers
Dimmable via 1 ... 10 V
Output dimmed analogue (current amplitude)
Dimming range typ. 10 to 100 % (depending on dimmer)
For luminaires of protection class I and protection class II
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-13 C5e
SELV
Output current 180, 350 or 500 mA
Output power 10 W
Nominal life-time up to 50,000 h
5-year guarantee
Housing properties
Casing: polycarbonate, white
Type of protection IP20
Screw terminal
Functions
Overload protection
Short-circuit protection
No-load protection
No output current overshoot at mains on/off
Code Description Price Price+VAT Unit
CC10W180-270CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 180/200/250/270mA 26-38V ENEC Dipswitch-seadistatav KGP €10.00 €12.20 tk
CC10W200-350CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 200/250/300/350mA 16-29V ENEC Dipswitch-seadistatav KGP €10.00 €12.20 tk
CC10W350-500CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 350/400/450/500mA 12-20V ENEC Dipswitch-seadistatav KGP €10.00 €12.20 tk
Code: CC10W180-270CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 180/200/250/270mA 26-38V ENEC Dipswitch-seadistatav KGP
Price: €10.00
Price+VAT: €12.20
tk
Code: CC10W200-350CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 200/250/300/350mA 16-29V ENEC Dipswitch-seadistatav KGP
Price: €10.00
Price+VAT: €12.20
tk
Code: CC10W350-500CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 350/400/450/500mA 12-20V ENEC Dipswitch-seadistatav KGP
Price: €10.00
Price+VAT: €12.20
tk
×
