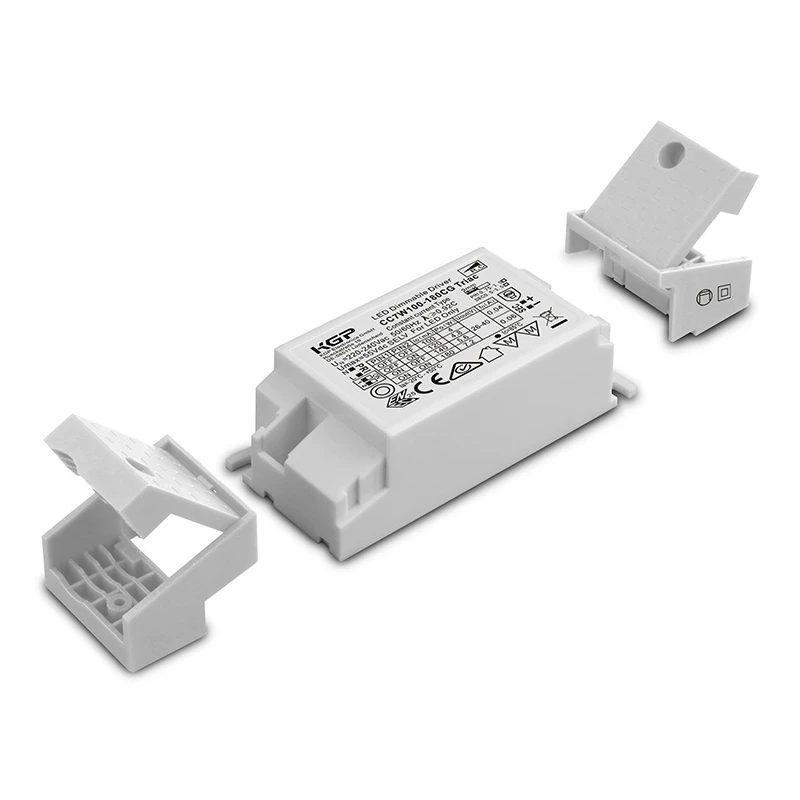

Led Driver 10W ConstantCurrent Triac dimmerdatav
Led Driver 10W ConstantCurrent Triac dimmerdatav
Led Driver 10W ConstantCurrent Triac dimmerdatav
Led Driver 10W ConstantCurrent Triac dimmerdatav

Led Driver 10W ConstantCurrent Triac dimmerdatav

Input Voltage 220 – 240V
Frequency 50 – 60 Hz
Power Factor 0.92
Current Ripple ± 5%
Constant Current LED Driver, Triac dimmable, Leading & Trailing edge
Output Current adjustable via DIP-SWITCH
180mA, 200mA, 250mA, 280mA
200mA, 250mA, 300mA, 350mA
350mA, 400mA, 450mA, 500mA
up to 82% Efficiency
Lifetime 50.000h
IP grade IP20
Insulation Class II

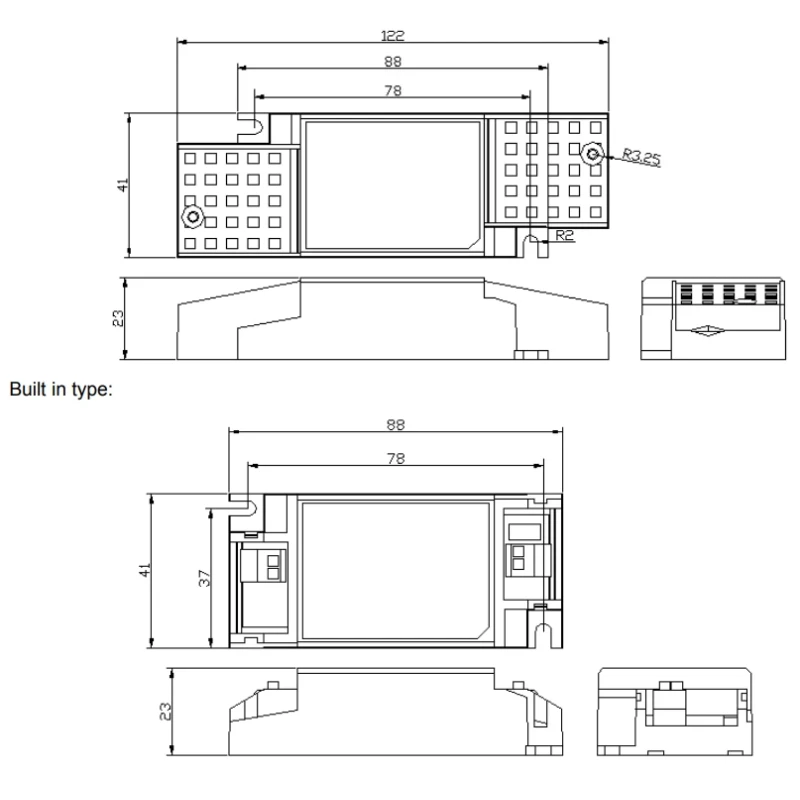

Housing with removable cord grip - 125 x 41 x 23mm
Overload Protection, Short Circuit Protection, Open Circuit Protection, Overheat Protection
SELV

Kood Kirjeldus KM-ta KM-ga ühik
CC10W180-270CG_TRIAC
 Led Driver Triac PhaseCut dimm 10W 180/200/250/270mA 26-38V ENEC Dipswitch-seadistatav KGP 10,00 € 12,20 € tk
CC10W200-350CG_TRIAC
 Led Driver Triac PhaseCut dimm 10W 200/250/300/350mA 16-29V ENEC Dipswitch-seadistatav KGP 10,00 € 12,20 € tk
CC10W350-500CG_TRIAC
 Led Driver Triac PhaseCut dimm 10W 350/400/450/500mA 12-20V ENEC Dipswitch-seadistatav KGP 10,00 € 12,20 € tk
Kood: CC10W180-270CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 180/200/250/270mA 26-38V ENEC Dipswitch-seadistatav KGP
KM-ta: 10,00 €
KM-ga: 12,20 €
tk
Kood: CC10W200-350CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 200/250/300/350mA 16-29V ENEC Dipswitch-seadistatav KGP
KM-ta: 10,00 €
KM-ga: 12,20 €
tk
Kood: CC10W350-500CG_TRIAC
Led Driver Triac PhaseCut dimm 10W 350/400/450/500mA 12-20V ENEC Dipswitch-seadistatav KGP
KM-ta: 10,00 €
KM-ga: 12,20 €
tk
×
