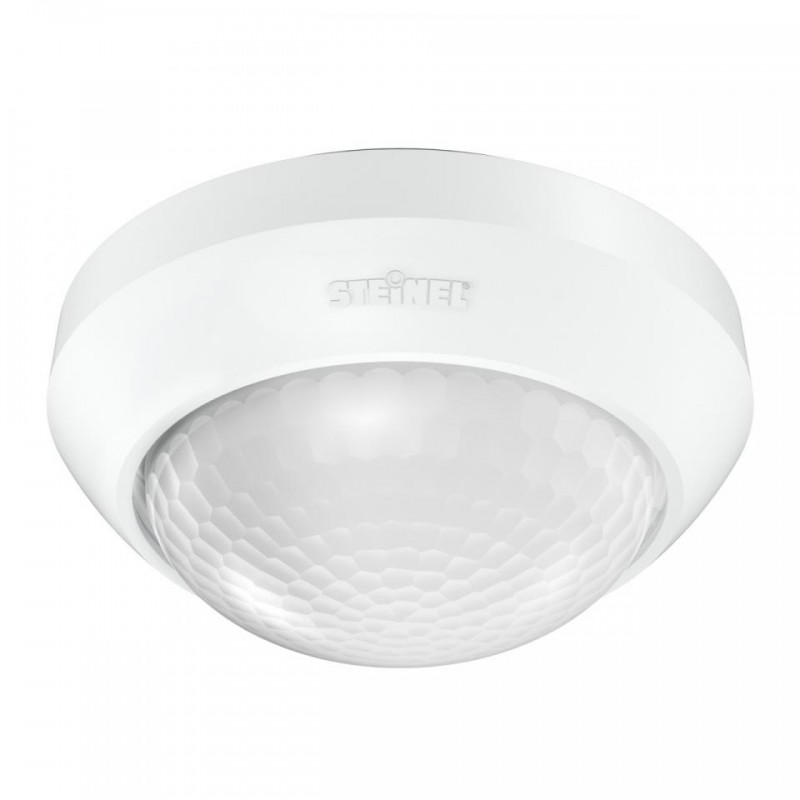

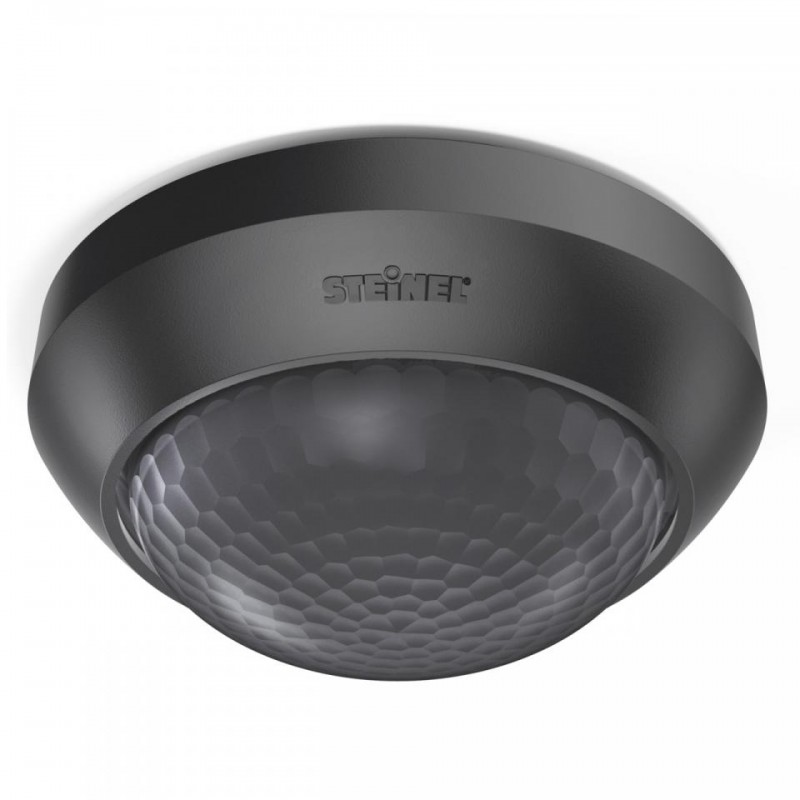

IS 2360-3 ECO Motion detector 360º 2000W IP54 Ø24m

Type: Motion detectors

Dimensions (Ø x H): 121 x 57 mm

Mains power supply: 220 – 240 V / 50 – 60 Hz

Sensor Technology: passive infrared

Application, place: Outdoors, Indoors

Installation: Surface wiring

Mounting height: 2,50 – 6,00m optimum 2,8m

Detection angle: 360 °

Angle of aperture: 90 °

Sneak-by guard: Yes

Capability of masking out individual segments: Yes

Reach, radial: Ø 6 m (28 m²)

Reach, tangential: Ø 24 m (452 m²)

Twilight setting: 2 – 1000 lx

Time setting: 5 s – 15 Min.

Output: 2000 W

Settings via Potentiometers

Interconnection: Yes

IP-rating: IP54

Material: Plastic

Ambient temperature: -20 – 50 °C

Fails

IS 2360-3 ECO manual

Code	Description		Price	Price+VAT	Unit
057770	IS 2360-3 ECO VALGE IR-liikumisandur pinnale 2000W (8xLEDi) IP54 360°Ø max 24m Steinel		€77.22 €73.36	-5% €90.97	tk
081706	IS 2360-3 ECO MUST IR-liikumisandur pinnale 2000W (8xLEDi) IP54 360°Ø max 24m Steinel		€68.94 €65.49	-5% €81.21	tk
