IS 2360-3 ECO liikumisandur 360º 2000W IP54 Ø24m

Type: Motion detectors

Dimensions (Ø x H): 121 x 57 mm

Mains power supply: 220 – 240 V / 50 – 60 Hz

Sensor Technology: passive infrared

Application, place: Outdoors, Indoors

Installation: Surface wiring

Mounting height: 2,50 – 6,00m optimum 2,8m

Detection angle: 360 °

Angle of aperture: 90 °

Sneak-by guard: Yes

Capability of masking out individual segments: Yes

Reach, radial: Ø 6 m (28 m²)

Reach, tangential: Ø 24 m (452 m²)

Twilight setting: 2 – 1000 lx

Time setting: 5 s – 15 Min.

Output: 2000 W

Settings via Potentiometers

Interconnection: Yes

IP-rating: IP54

Material: Plastic

Ambient temperature: -20 – 50 °C

Failid

IS 2360-3 ECO manual

Kood	Kirjeldus		KM-ta	KM-ga	ühik

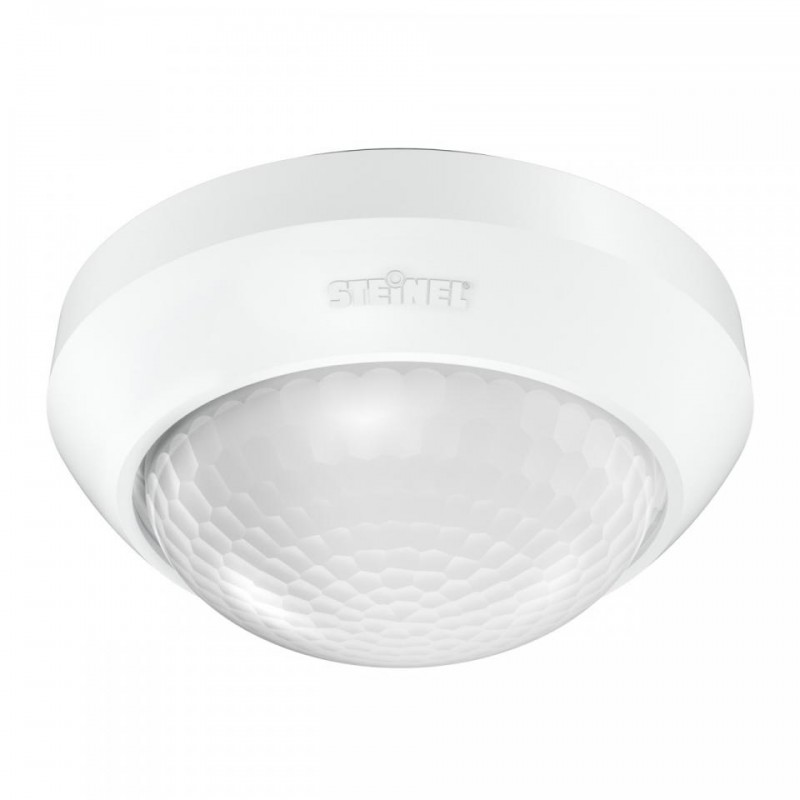

057770	IS 2360-3 ECO VALGE IR-liikumisandur pinnale 2000W (8xLEDi) IP54 360°Ø max 24m Steinel		77,22 € 73,36 €	-5% 90,97 €	tk

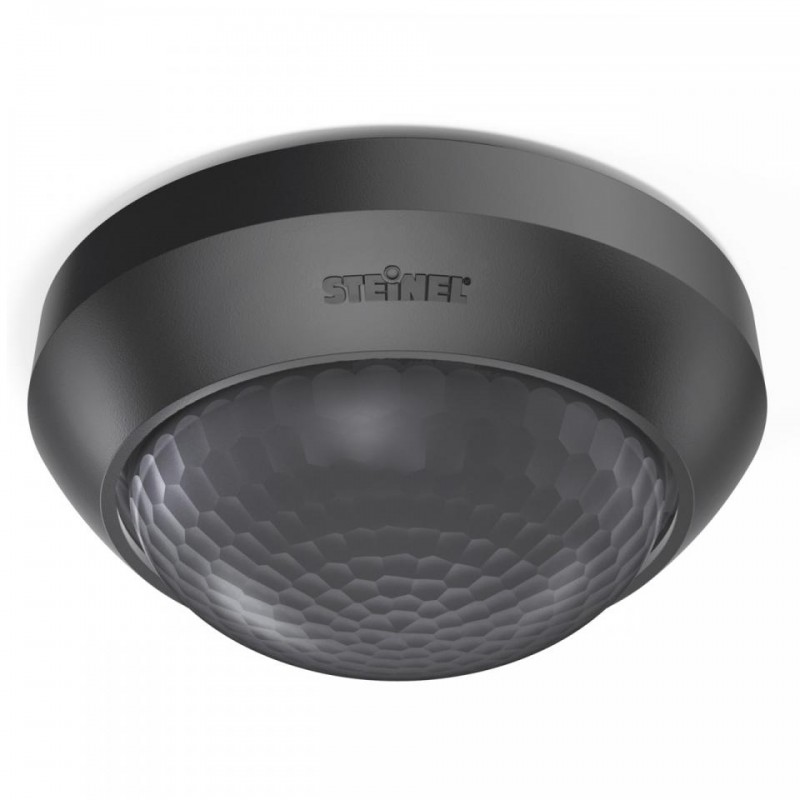

081706	IS 2360-3 ECO MUST IR-liikumisandur pinnale 2000W (8xLEDi) IP54 360°Ø max 24m Steinel		68,94 € 65,49 €	-5% 81,21 €	tk
