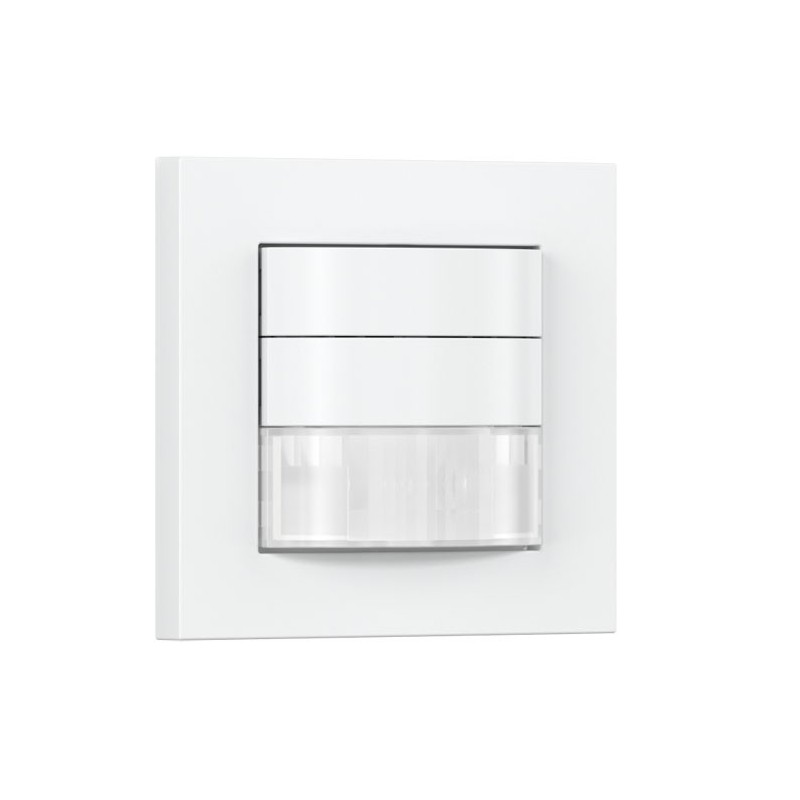

IR 180 COM1 Motion/presence detector 180º 2000W IP20

IR 180 COM1 Motion/presence detector 180º 2000W IP20

Type:Presence detector
Dimensions (L x W x H): 30 x 80 x 80 mm
Mains power supply: 220 – 240 V / 50 – 60 Hz
Sensor Technology: passive infrared
Application, place: Indoors
Installation: Concealed wiring
Electronic scalability: Yes
Mounting height: 1,10 – 1,20 m
Optimum mounting height: 1,2 m
Detection angle: 180 °
Angle of aperture: 90 °
Sneak-by guard: Yes
Capability of masking out individual segments: No
Reach, radial: r = 4 m (25 m²)
Reach, tangential: r = 12 m (226 m²)
Twilight setting TEACH: Yes
Twilight setting: 2 – 1000 lx
Time setting: 30 s – 30 Min.
Output: 2000 W
Functions: Normal / test mode, Semi-/fully automatic, Switch active / switch inactive, Manual ON / ON-OFF
Settings via Remote control,DIP switches,Potentiometers,Smart Remote
Interconnection: Yes
IP-rating: IP20
Ambient temperature: 0 – 40 °C

Code Description Price Price+VAT Unit
029944
IR 180 COM1 liikumisandur süvistatav 180° 20m IP20 2000W(max 8xLED) 3-juhtme ühendus Steinel €81.88
€77.78
-5%
€94.89
tk
Code: 029944
IR 180 COM1 liikumisandur süvistatav 180° 20m IP20 2000W(max 8xLED) 3-juhtme ühendus Steinel
-5% Price: €81.88 €77.78
Price+VAT: €94.89
tk
