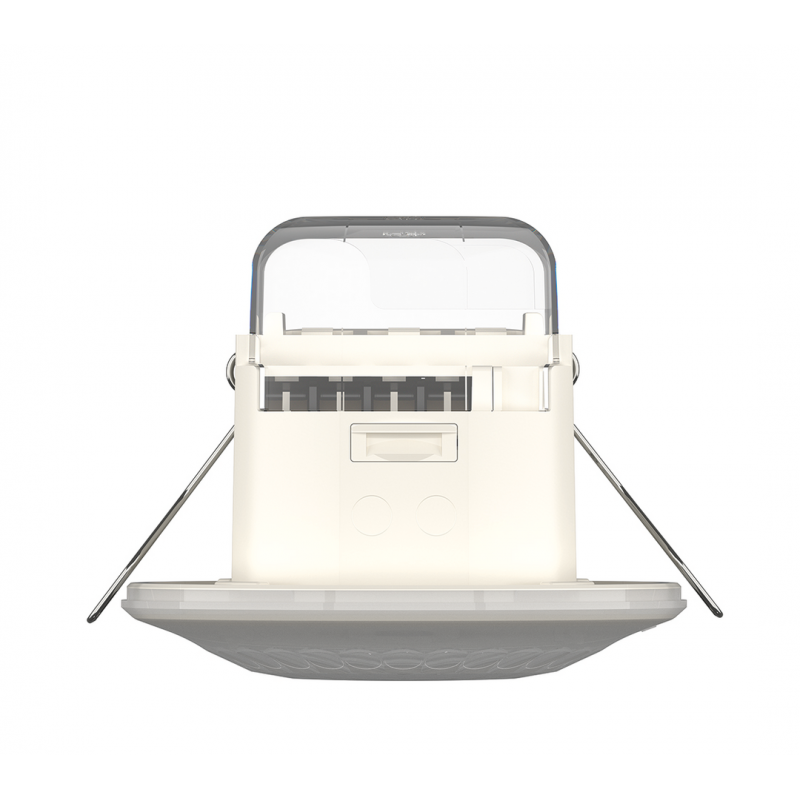

LUXA 103 S360-100-12 DE-UP WH presence detector 360º IP54

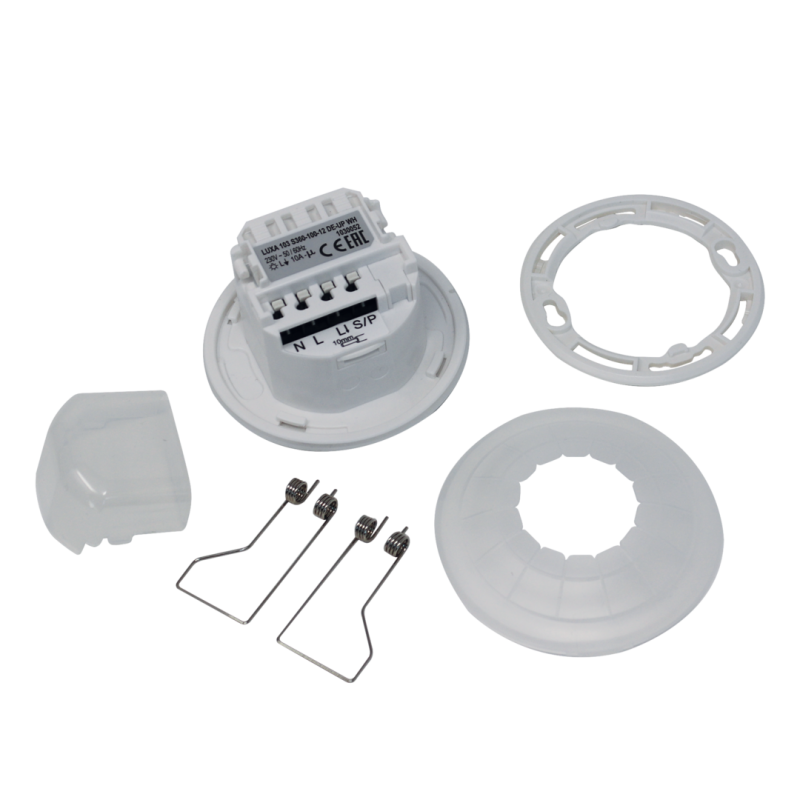

Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame

Technical data
Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ca. 0.5 W
Light measurement Mixed light measurement
Colour White
Switching output Light
Installation type Ceiling installation
Setting range brightness 5 – 1000 lx
Detection angle 360°
Installation height 2.5 – 3.5 m
Light switch-off delay 15 s - 30 min
Incandescent/halogen lamp load 2300 W
Inrush current max. 500 A / 200 µs
LED lamp 2-8 W 400 W
LED lamp > 8 W 400 W
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Remote controlled
Ambient temperature -25°C ... 55°C
Type of protection IP 54 (when fitted)

Technical data
Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ~1 W
Light measurement Mixed light measurement
Number of channels: 1
Type of contact: NO contact
Installation type: Flush-mounted wall installation
Setting range brightness 10 – 1000 lx
Infinitely adjustable
Switching capacity light 10 A (at 230 V AC, cos φ = 1), 3 AX (at 230 V AC, cos φ = 0.3)
Detection angle 200°, circular
Installation height 1,2 – 2 m
Light switch-off delay 20 s–30 min
Incandescent lamp load 1000 W
Fluorescent lamp load (conventional) parallel-corrected 400 VA 42 µF
Ambient temperature +0 °C … +45 °C
Protection class II
Type of protection IP 40

Code	Description		Price	Price+VAT	Unit
1030052	LUXA 103 S360-100-12 DE-UP WH Kohalolekuandur süvisp. 360°,Ø5/12m, 2300W, LED max. 400W, IP54 VALGE THEBEN		€51.20	€62.46	tk

Code: 1030052

LUXA 103 S360-100-12 DE-UP WH Kohalolekuandur süvisp. 360°,Ø5/12m, 2300W, LED max. 400W, IP54 VALGE THEBEN

Price: €51.20
Price+VAT: €62.46
