LUXA 103 S360-100-12 DE-UP WH kohalolekuandur 360º IP54

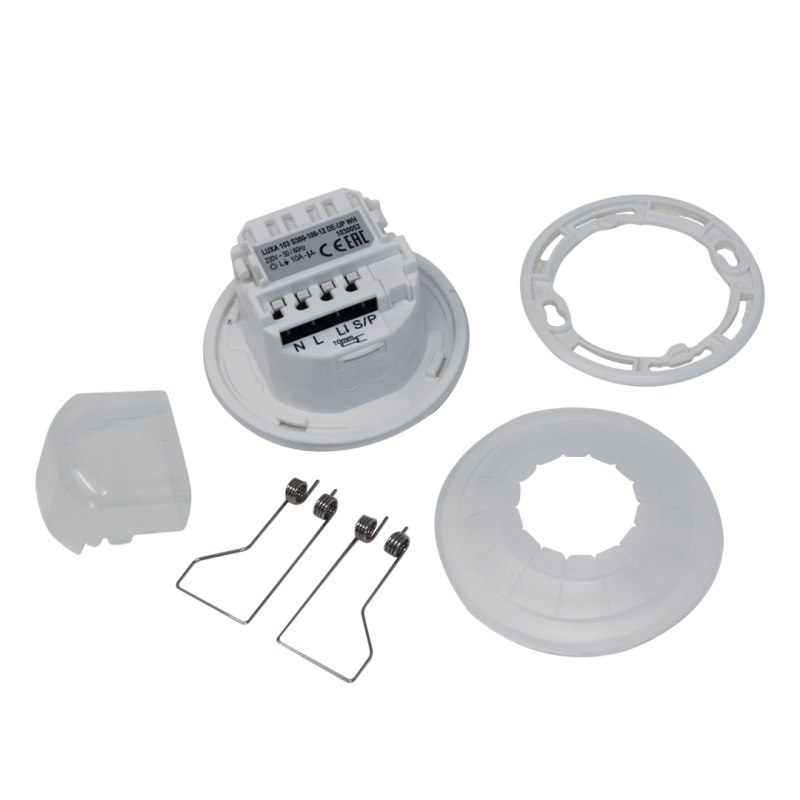

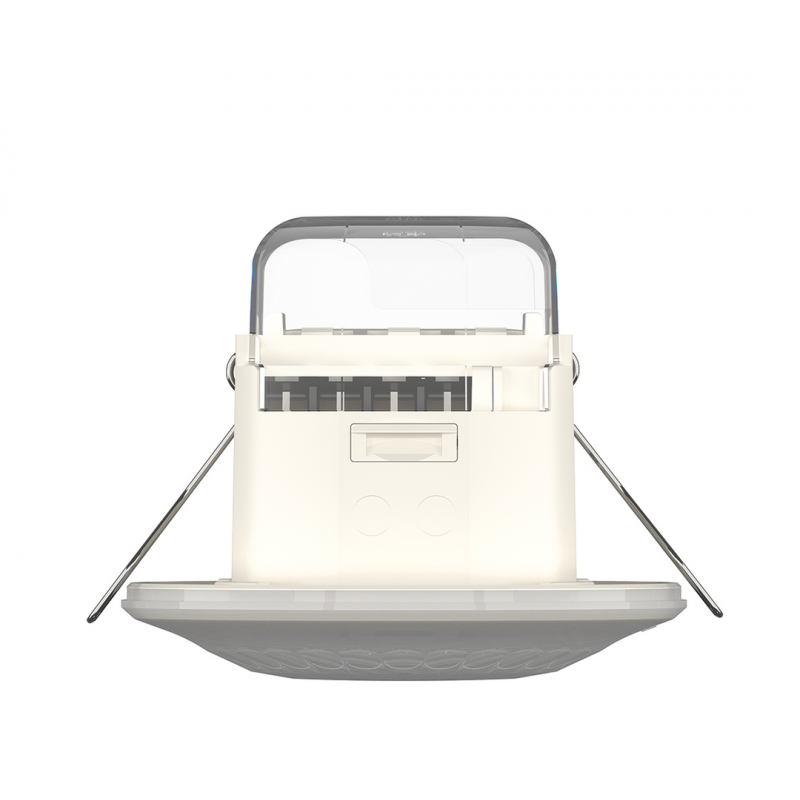

Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame

Technical data
Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ca. 0.5 W
Light measurement Mixed light measurement
Colour White
Switching output Light
Installation type Ceiling installation
Setting range brightness 5 – 1000 lx
Detection angle 360°
Installation height 2.5 – 3.5 m
Light switch-off delay 15 s - 30 min
Incandescent/halogen lamp load 2300 W
Inrush current max. 500 A / 200 µs
LED lamp 2-8 W 400 W
LED lamp > 8 W 400 W
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Remote controlled
Ambient temperature -25°C ... 55°C
Type of protection IP 54 (when fitted)
