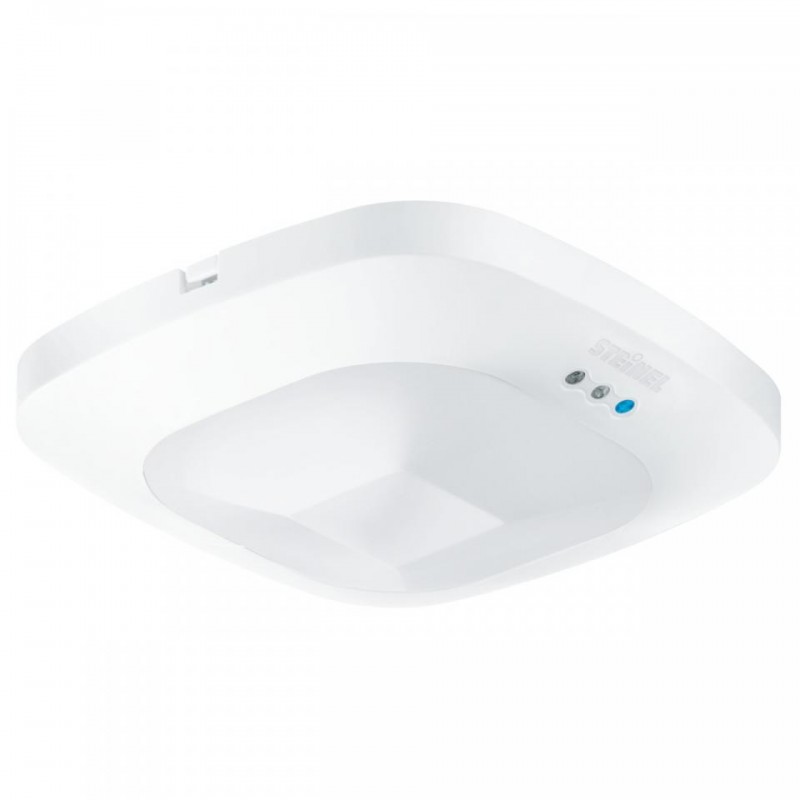

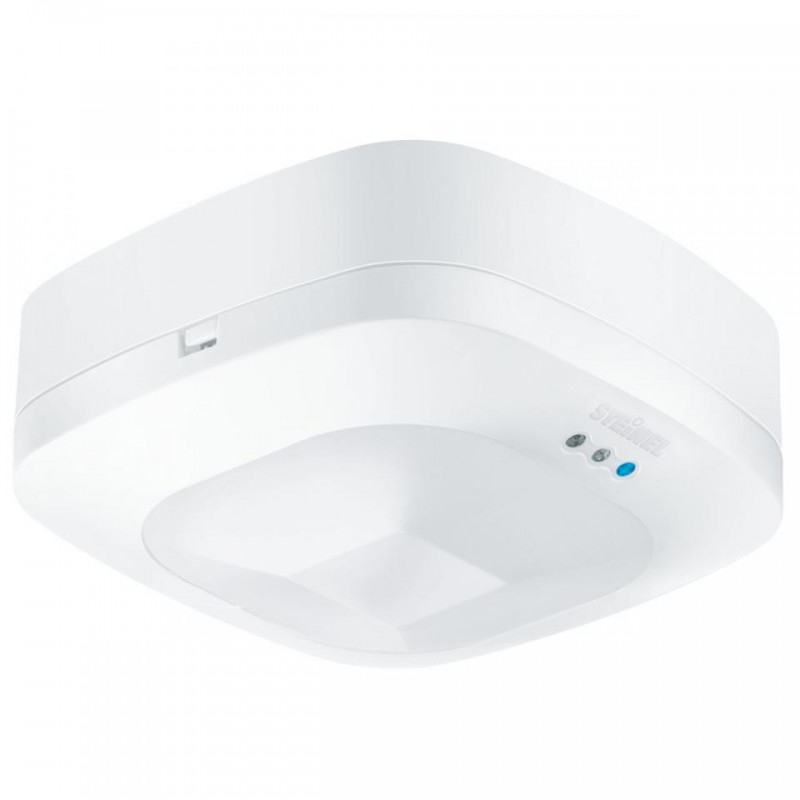

Pro HF 360 Presence detector 360º 2000W IP20 Ø12m
Pro HF 360 Presence detector 360º 2000W IP20 Ø12m
Pro HF 360 Presence detector 360º 2000W IP20 Ø12m
Pro HF 360 Presence detector 360º 2000W IP20 Ø12m

Pro HF 360 Presence detector 360º 2000W IP20 Ø12m

Type: Presence detector
Dimensions (L x W x H): 56x120x120 mm
Mains power supply: 230 V / 50–60Hz
Sensor Technology: High frequency  5,8GHz
Application, place: Indoors
Installation: Concealed wiring
Electronic scalability: Yes
Mounting height: 2,50 – 3,50 m Optimum 2,8m
Detection: also through glass, wood and stud walls
Detection angle: 360 °
Sneak-by guard: Yes
Capability of masking out individual segments: Yes, 1-2 detection directions can be masked
Reach, radial & tangential :Ø 12 m (113 m²)
Twilight setting TEACH: Yes
Twilight setting: 10–1000lx
Time setting: 30 s – 30 Min.
Output: 2000 W
Functions: Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Settings via: Remote control,DIP switches,Potentiometers,Smart Remote
IP-rating: IP20
Ambient temperature: -25 – 55 °C

Fails

description HF 360 manual

Code Description Price Price+VAT Unit
002800
HF 360 COM1 Kohaloleku andur süvistatav Ø12m 360° 2000W IP20 Steinel €110.99
€105.44 		-5%
€128.64 		tk
751302
HF 360 COM1 Kohaloleku andur pinnapealne Ø12m 360° 2000W IP20 STEINEL €120.90
€114.86 		-5%
€140.12 		tk
002848
HF 360 COM2 Kohaloleku andur süvistatav kuni Ø12m 360° 1x2000W max.8xLED 2x230W max.1A IP20 Steinel €117.96
€112.06 		-5%
€136.71 		tk
Code: 002800
HF 360 COM1 Kohaloleku andur süvistatav Ø12m 360° 2000W IP20 Steinel
-5% Price: €110.99 €105.44
Price+VAT: €128.64
tk
Code: 751302
HF 360 COM1 Kohaloleku andur pinnapealne Ø12m 360° 2000W IP20 STEINEL
-5% Price: €120.90 €114.86
Price+VAT: €140.12
tk
Code: 002848
HF 360 COM2 Kohaloleku andur süvistatav kuni Ø12m 360° 1x2000W max.8xLED 2x230W max.1A IP20 Steinel
-5% Price: €117.96 €112.06
Price+VAT: €136.71
tk
×
