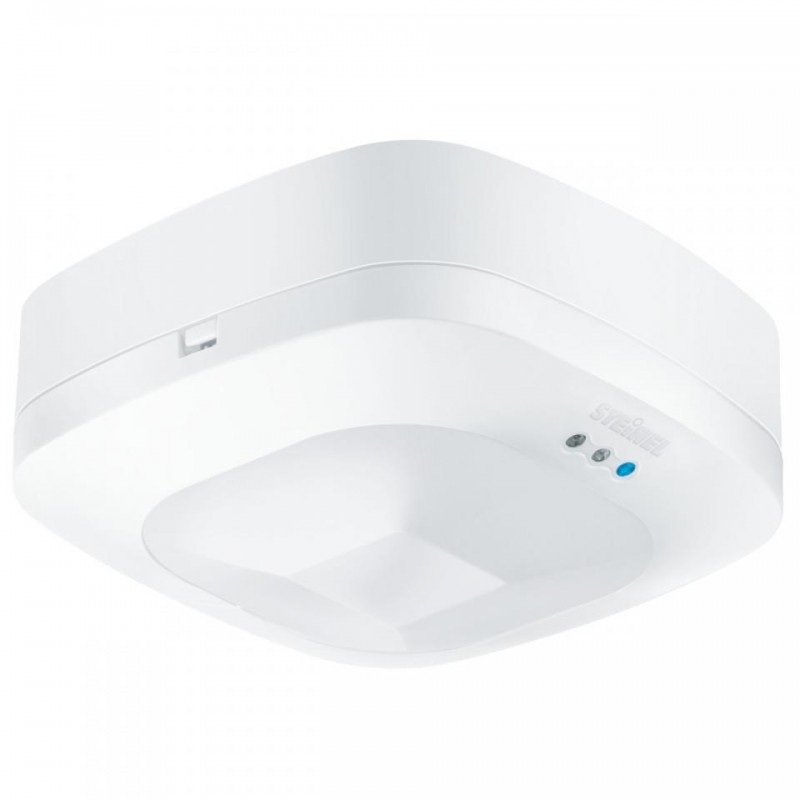

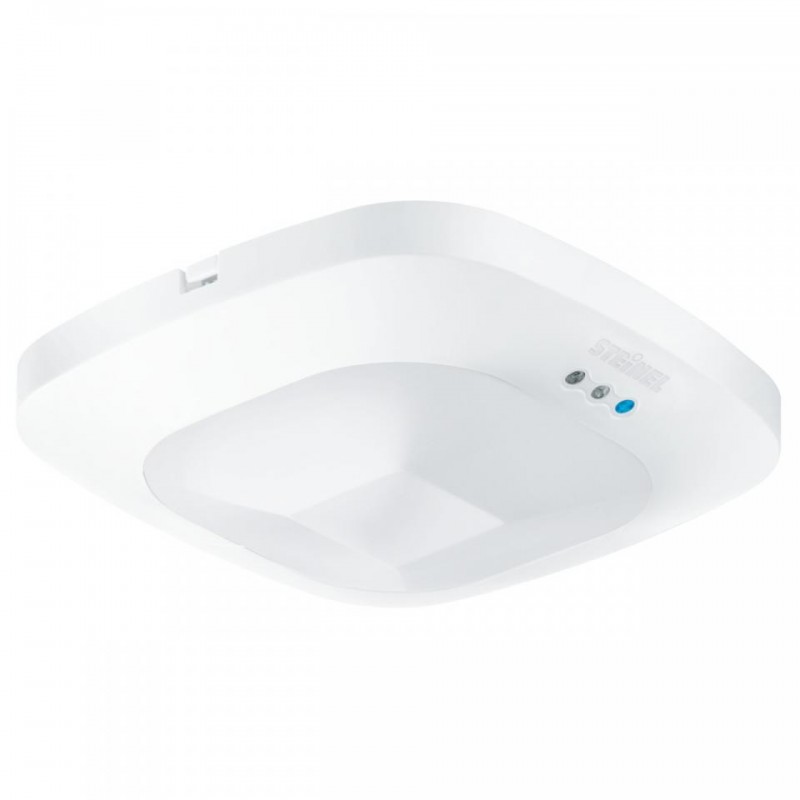

Type: Presence detector
Dimensions (L x W x H): 56x120x120 mm
Mains power supply: 230 V / 50–60Hz
Sensor Technology: High frequency  5,8GHz
Application, place: Indoors
Installation: Concealed wiring
Electronic scalability: Yes
Mounting height: 2,50 – 3,50 m Optimum 2,8m
Detection: also through glass, wood and stud walls
Detection angle: 360 °
Sneak-by guard: Yes
Capability of masking out individual segments: Yes, 1-2 detection directions can be masked
Reach, radial & tangential :Ø 12 m (113 m²)
Twilight setting TEACH: Yes
Twilight setting: 10–1000lx
Time setting: 30s–30Min.
Output: 2000 W
Functions: Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Settings via: Remote control,DIP switches,Potentiometers,Smart Remote
IP-rating: IP20
Ambient temperature: -25 – 55 °C
