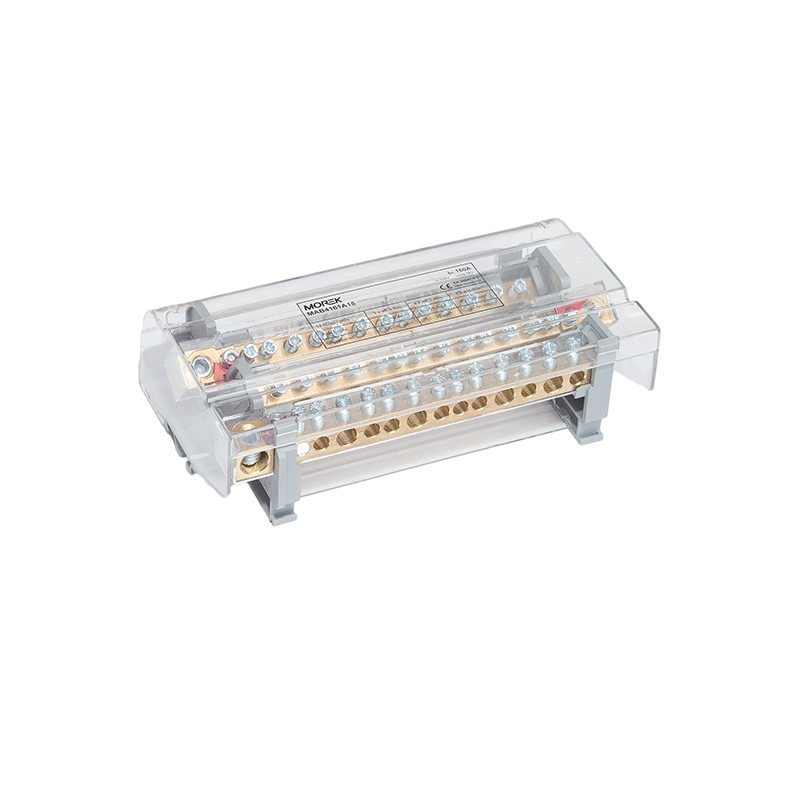

Hargnemisplokk 4P 160A

Hargnemisplokk 4P 160A

  • Wire material Cu
  • Cross-section min. (mm²) 1,5
  • Cross-section max. (mm²) 50
  • Input wire min. (mm²) 1 x 10
  • Input wire max. (mm²) 1 x 50
  • Output wire min. (mm²) 9 x 1,5 / 4 x 10
  • Output wire max. (mm²) 9 x 16 / 4 x 35
  • Number of connections 14
  • Nominal current (A) 160
  • Nominal voltage (V) 500
  • Material Brass, galvanized steel, polyamide PA66, polycarbonate
  • Mounting method DIN rail, screw
  • Item width (mm) 99
  • Item length (mm) 181
  • Item height (mm) 54
  • Rated surge voltage (kV) 8
  • Short-circuit resistance (kA/1s) 6
  • Tightening torque (Nm) 2,5 Nm (output)10 Nm (input)
  • Certification EN 60947-1; EN 609947-7-8
  • Flame resistance UL94 V0
Kood Kirjeldus KM-ta KM-ga ühik
MAB4161A18
 Hargnemisplokk , 4P , 160A-14 ,1X50+4X35+9X16 mm² , Morek 29,70 € 36,83 € tk
Kood: MAB4161A18
Hargnemisplokk , 4P , 160A-14 ,1X50+4X35+9X16 mm² , Morek
KM-ta: 29,70 €
KM-ga: 36,83 €
tk
×
