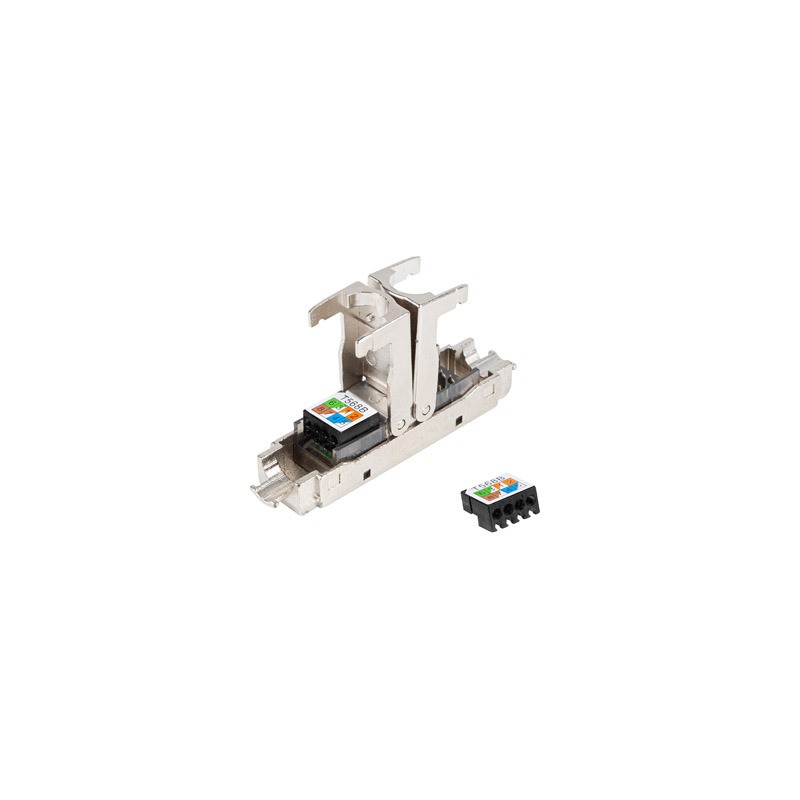

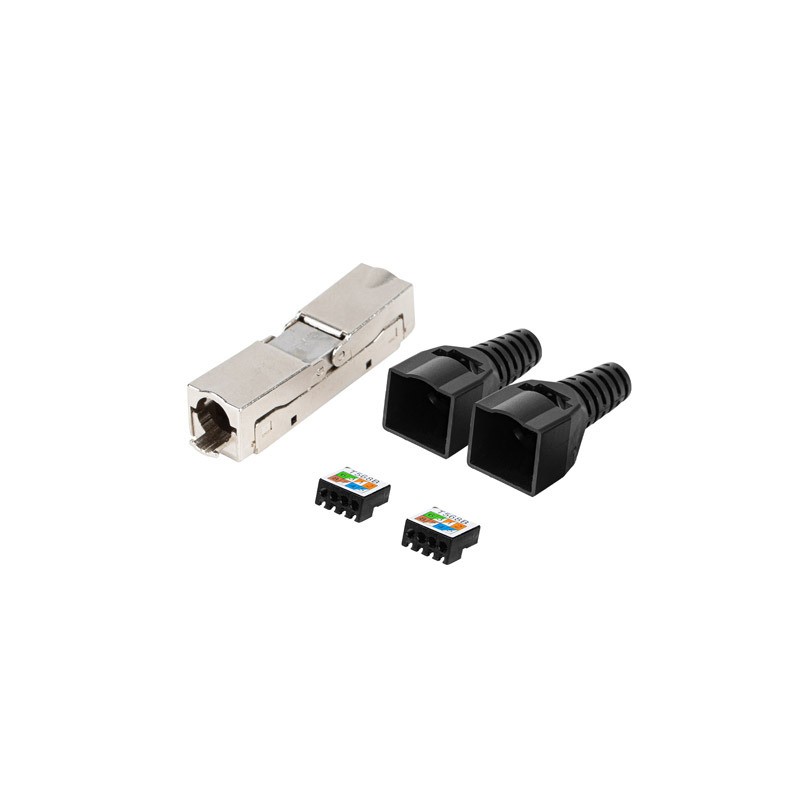

Arvutikaabli jätk cat6 FTP tööriistavaba

Arvutikaabli jätk cat6 FTP tööriistavaba

Easily assemble without special tool.
Suitable for solid wire from AWG 26/1 to AWG 22/1.
Compliance with Class E ISO/IEC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09.
Adjustable strain relief, suitable for cable jacket diameter from 6.0 to 9.0mm.
Load bar for faster and easier wire pattern termination.
Reuseable design.
3µ gold plated phosphor bronze pin, durability: 750 cycles.
Operating temperature: -25 to 68, relateive humidity:
85%, air pressure: 70 to106KPa.
Intermediate resistance: 20M in normal atmosphere pressure (not include bulk resistor).
Insulated resistance: 1000M in normal atmosphere pressure.
Withstanding voltage: DC 1000V (AC 700V), no puncture or spark-over in 1 minute.
Retention strength: 7.7kg between jack and plug.
