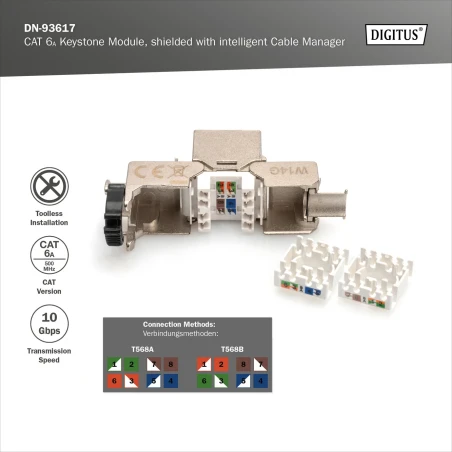

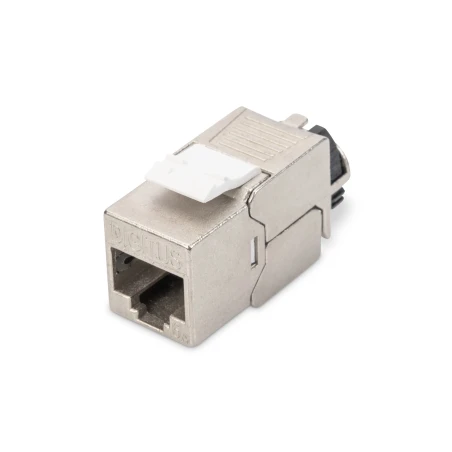

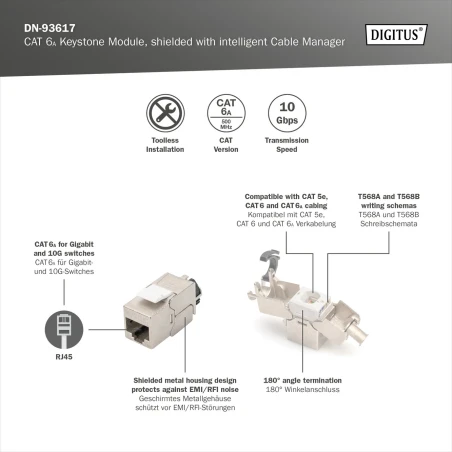

Arvutipesa cat6a varjega KEYSTONE RJ45 tööriistavaba

Category 6A 10GBase-T, 500 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)
Suitable for distribution panel and junction box installation
RJ45 socket, 8P8C
Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B

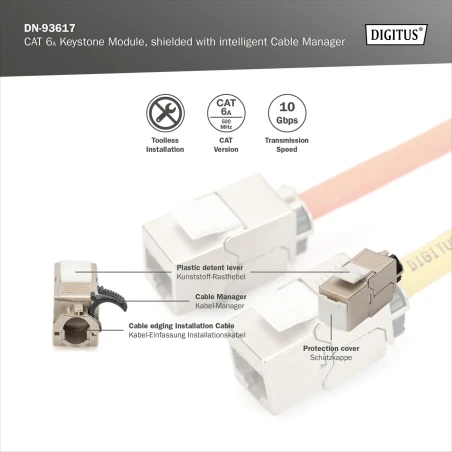

Strain relief and cable fixing using intelligent cable manager
Tool-free mounting connection
360° shield contacting
Housing material: Zinc die-cast - nickel-plated
Contact material: Phosphor bronze
Coating Contacts: Nickel, gold-plated 0.5 μ
Insertion force: Max. 30N (according to IEC 60603-7-51)
Holding force: 7.7 kg between socket and plug
Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: ≥ 1000 (ISO/IEC 11801, IEC 60603-7-51)
Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
Tested with AWG 22/1 solid installation cable
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
Intelligent cable manager (reclosable)
Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
