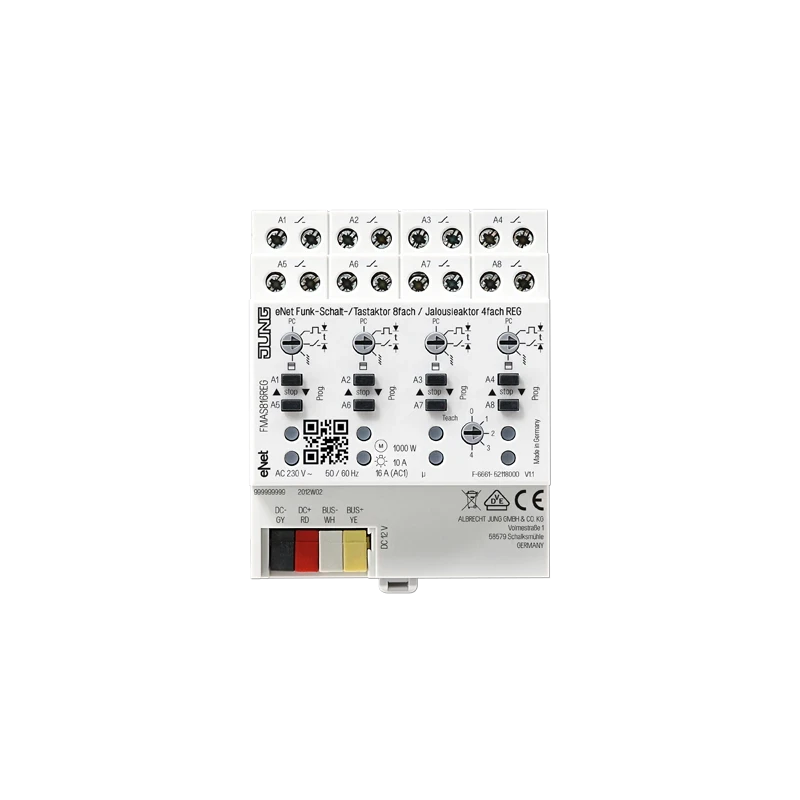

FMAS816REG eNet lülitusseade DIN-latile 8/4-kanalit

rail mounting device, 4 rail units

Intended use

Switching of lighting

Switching of single-phase fan motors

Controlling electrically driven blinds, shutters and awnings

Operation with suitable eNet radio transmitters

Operation with power supply (ref.-no. NT 1220 REG VDC) and eNet radio receiver (ref.-no. FM FK 32 REG) or eNet server

Mounting on DIN rail according to EN 60715 in distribution box

Product characteristics

Operating mode switch for switch-over of switch actuator, push-button actuator, blind actuator, shutter actuator or configuration via eNet server

Status feedback to radio transmitter

Scene operation possible

Outputs switchable with Prog button

Status indication of the outputs via LED

Switching operation:

Switch-on telegram: Device switches on

Switch-off telegram: Device switches off

Push-button operation:

Relay contact remains closed as long as ON or OFF telegrams are being received

The maximum switch-on time is 60 seconds

Operating mode "Venetian blind / Roller shutter":

Positioning of the blind and slats via light scene recall

Position for sun protection and twilight can be saved

Blind/shutter running time can be saved

Slat change-over time can be saved

Fabric-stretching for awnings

Can be set with eNet server in switching/push-button operation:

Operating mode for each output can be set separately

Flash function

Run-on time

Switch-on delay / switch-off delay

Operation as 1-way NO or 1-way NC contacts

Switch-off warning

Minimum switching repeat time

Operating locks

Continuous on, Continuous off

Can be set in the operating mode "Venetian blind/Rolling shutter" with eNet server:

Change-over time for direction change

Running direction invertible

Operating locks

Position for sun protection, twilight, lock-out protection and wind alarm

Supplementary functions with eNet server:

Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0

Update of the device software

Reading of error memory

Koguseline allahindlus

Kogus	Discount
10	10%

Kood	Kirjeldus		KM-ta	KM-ga	ühik
FMAS816REG	eNet lülitusseade DIN-latile 8/4-kanalit 4M JUNG		348,44 €	425,10 €	tk

Kood: FMAS816REG

eNet lülitusseade DIN-latile 8/4-kanalit 4M JUNG

KM-ta: 348,44 €
KM-ga: 425,10 €
