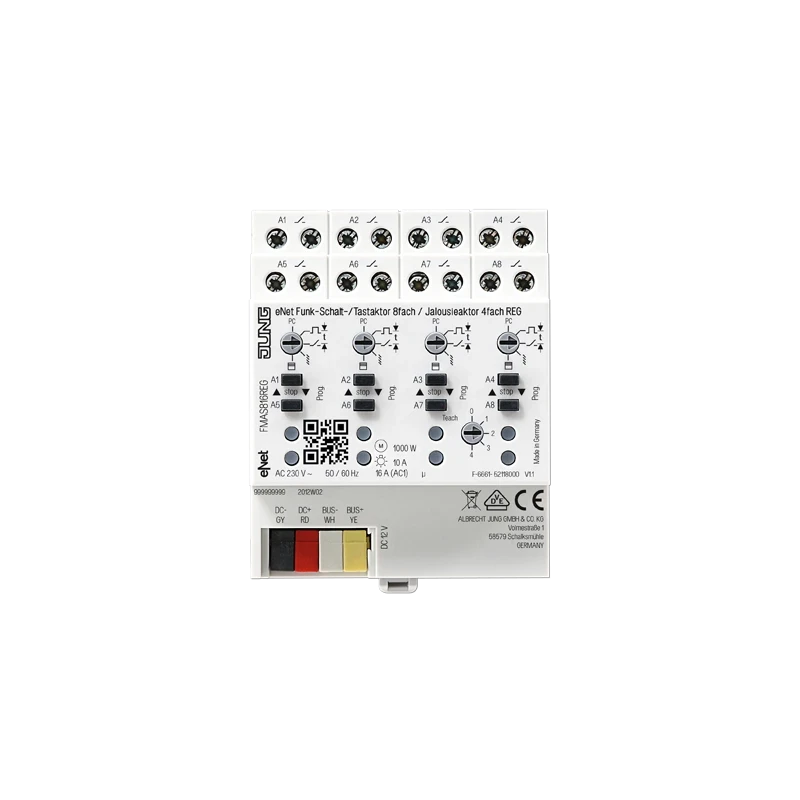

FMAS816REG eNet radio switch/push-button actuator 8-gang

FMAS816REG eNet radio switch/push-button actuator 8-gang

rail mounting device, 4 rail units
Intended use
Switching of lighting
Switching of single-phase fan motors
Controlling electrically driven blinds, shutters and awnings
Operation with suitable eNet radio transmitters
Operation with power supply (ref.-no. NT 1220 REG VDC) and eNet radio receiver (ref.-no. FM FK 32 REG) or eNet server
Mounting on DIN rail according to EN 60715 in distribution box

Product characteristics
Operating mode switch for switch-over of switch actuator, push-button actuator, blind actuator, shutter actuator or configuration via eNet server
Status feedback to radio transmitter
Scene operation possible
Outputs switchable with Prog button
Status indication of the outputs via LED
Switching operation:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off

Push-button operation:
Relay contact remains closed as long as ON or OFF telegrams are being received
The maximum switch-on time is 60 seconds
Operating mode "Venetian blind / Roller shutter":
Positioning of the blind and slats via light scene recall
Position for sun protection and twilight can be saved
Blind/shutter running time can be saved
Slat change-over time can be saved
Fabric-stretching for awnings
Can be set with eNet server in switching/push-button operation:
Operating mode for each output can be set separately
Flash function
Run-on time
Switch-on delay / switch-off delay
Operation as 1-way NO or 1-way NC contacts
Switch-off warning
Minimum switching repeat time
Operating locks
Continuous on, Continuous off

Can be set in the operating mode "Venetian blind/Rolling shutter" with eNet server:
Change-over time for direction change
Running direction invertible
Operating locks
Position for sun protection, twilight, lock-out protection and wind alarm
Supplementary functions with eNet server:
Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Update of the device software
Reading of error memory

Volume discounts

Quantity Discount
10 10%
Code Description Price Price+VAT Unit
FMAS816REG
eNet lülitusseade DIN-latile 8/4-kanalit 4M JUNG €348.44 €425.10 tk
Code: FMAS816REG
eNet lülitusseade DIN-latile 8/4-kanalit 4M JUNG
Price: €348.44
Price+VAT: €425.10
tk
×
