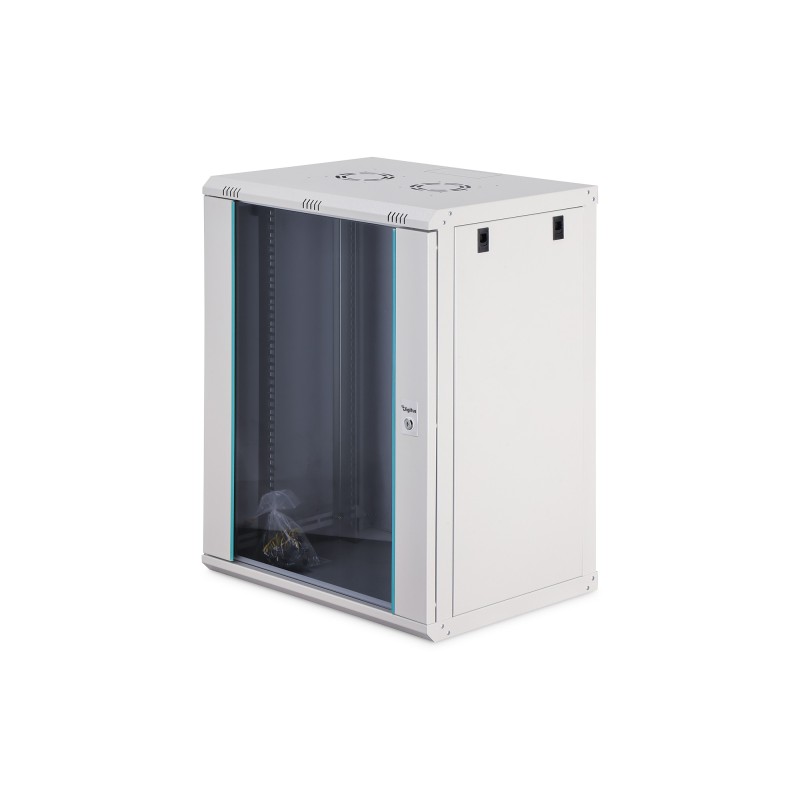

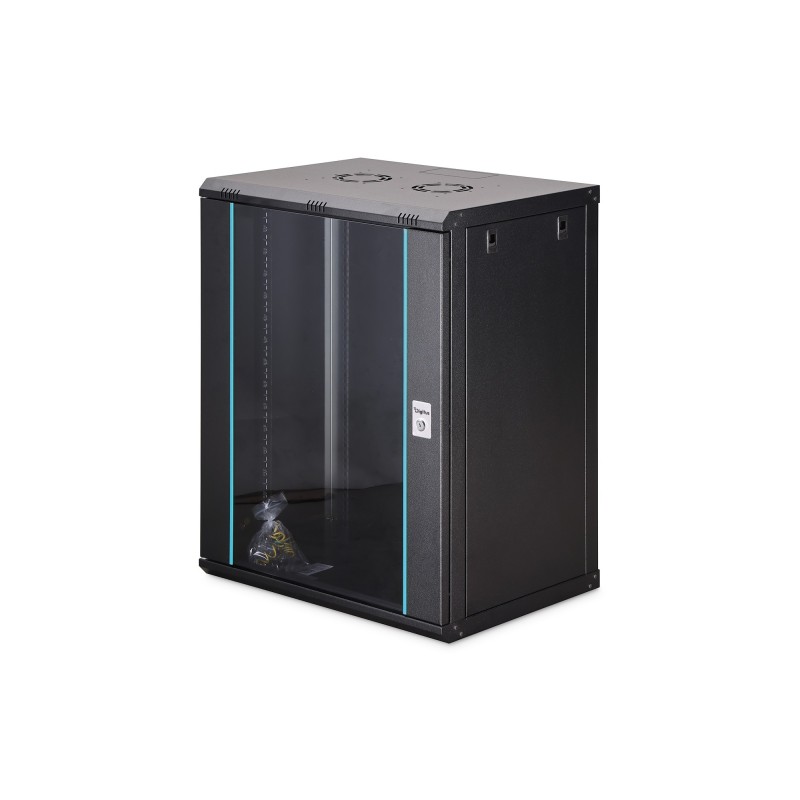

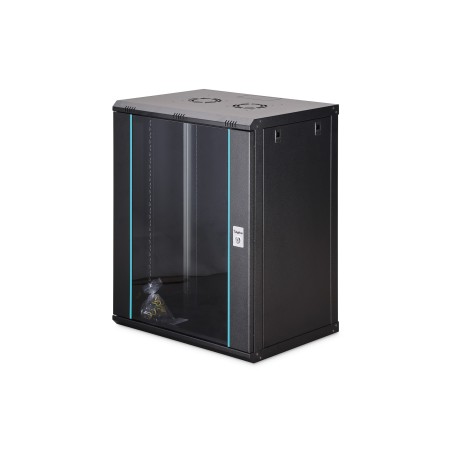

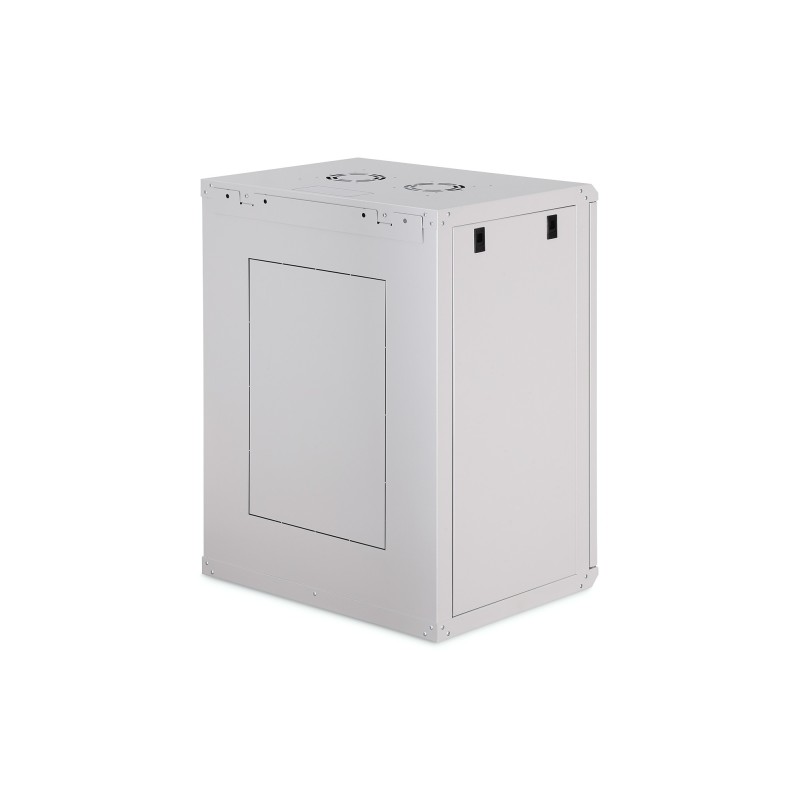

19" seinakapp 16U süg. 450mm klaasuks

Protection class IP20
Lockable safety glass door with steel frame
230° door opening angle
1-point locking on the front door
483 mm (19") profile rails at the front and rear inside the enclosure, galvanized
483 mm (19") profile rails are adjustable in depth and marked with the height unit
1.0 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated
Cable entry possible at the rear, roof and base (pre-punched cut-outs)
Roof is prepared to accommodate a fan element (punched-out mounts)
Ventilation slots for active and passive ventilation
4 earthing points (base, side panel and front door) with protective cap
Installation depth for components (standard maximum): 219 - 320 mm

Kood	Kirjeldus		KM-ta	KM-ga	ühik
DN-37112	19" seinakapp 16U süg. 450mm klaasuks hall Digitus		170,81 €	211,80 €	tk
DN-37113	19" seinakapp 16U süg. 450mm klaasuks must Digitus		170,81 €	211,80 €	tk

Kood: DN-37112

19" seinakapp 16U süg. 450mm klaasuks hall Digitus

KM-ta: 170,81 €
KM-ga: 211,80 €

Kood: DN-37113

19" seinakapp 16U süg. 450mm klaasuks must Digitus

KM-ta: 170,81 €
KM-ga: 211,80 €
