Seinakapp 19" 9U 540x350mm klaasuks

Type of cabinet Wall mount
Size 19"
ICT height 9 U
Assembly type Self-assembly
Working depth 305 mm
Front door type Temper glass
Door type Single-leaf
Maximum front door opening angle 220 °
Maximum static load 60 kg
Slot amount for fans 2
Number of vertical rails 4
Weatherproof rating IP20
Front door thickness 5 mm
Upper & lower panel thickness 1 mm
Side panel thickness 1 mm
Mounting rails thickness 1.5 mm
Frame thickness 1.2 mm
Other elements sheet thickness 1 mm
Depth 350 mm
Width 540 mm
Height 500 mm
Weight 13.8 kg
Standard ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Grounding Details Bottom panel, Front door
Included Accessories Front lock, Grounding cable, M6 screws, Mounting bracket, User Manual

Kood	Kirjeldus		KM-ta	KM-ga	ühik

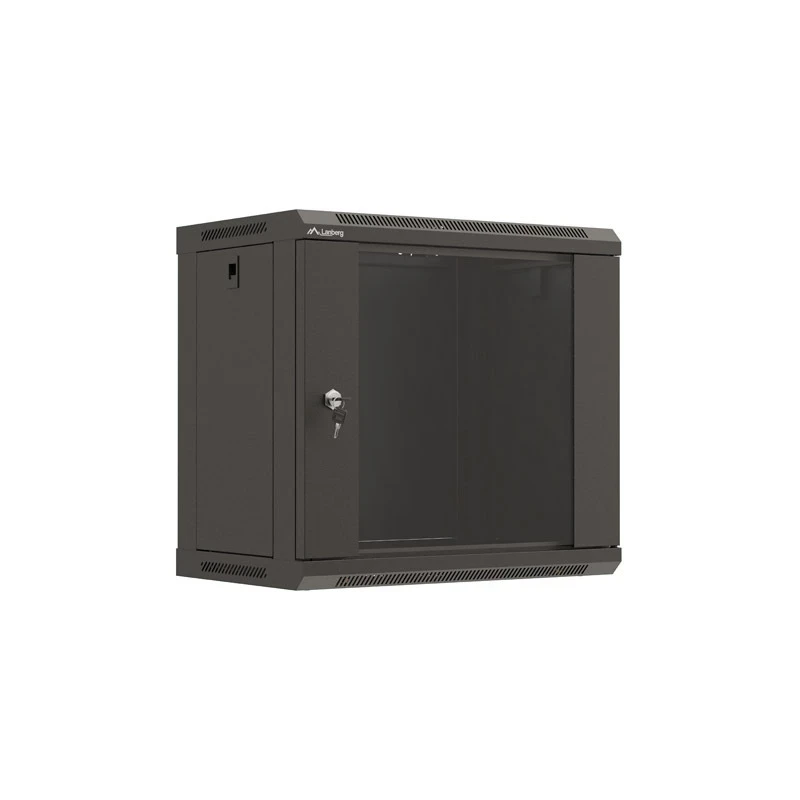

WF03-5309-10B	Seinakapp 19" 9U 540x350mm klaasuks must Lanberg		60,69 €	74,04 €	tk

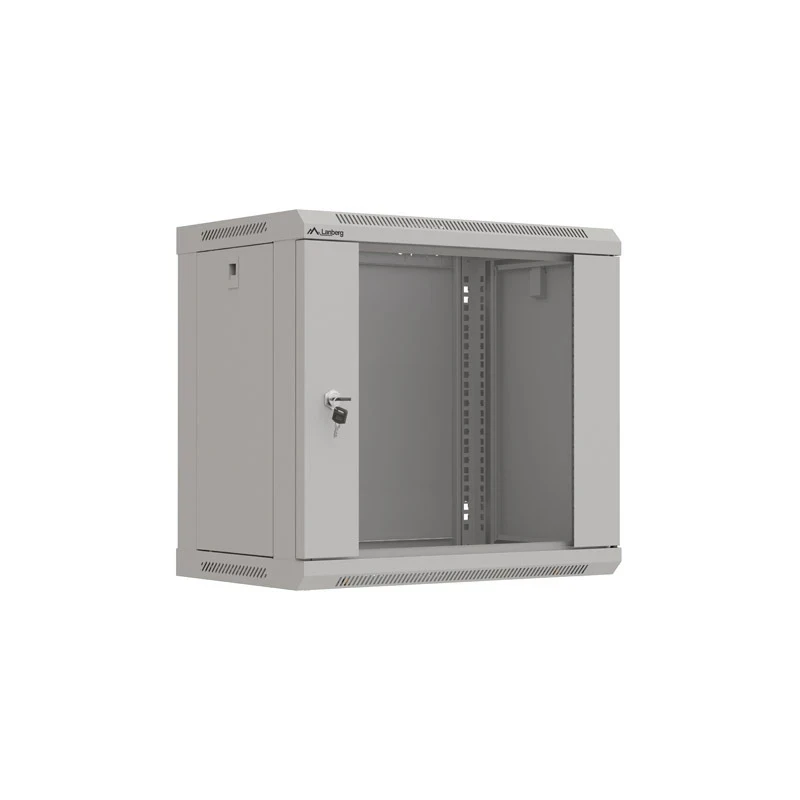

WF03-5309-10S	Seinakapp 19" 9U 540x350mm klaasuks hall Lanberg		60,69 €	74,04 €	tk
