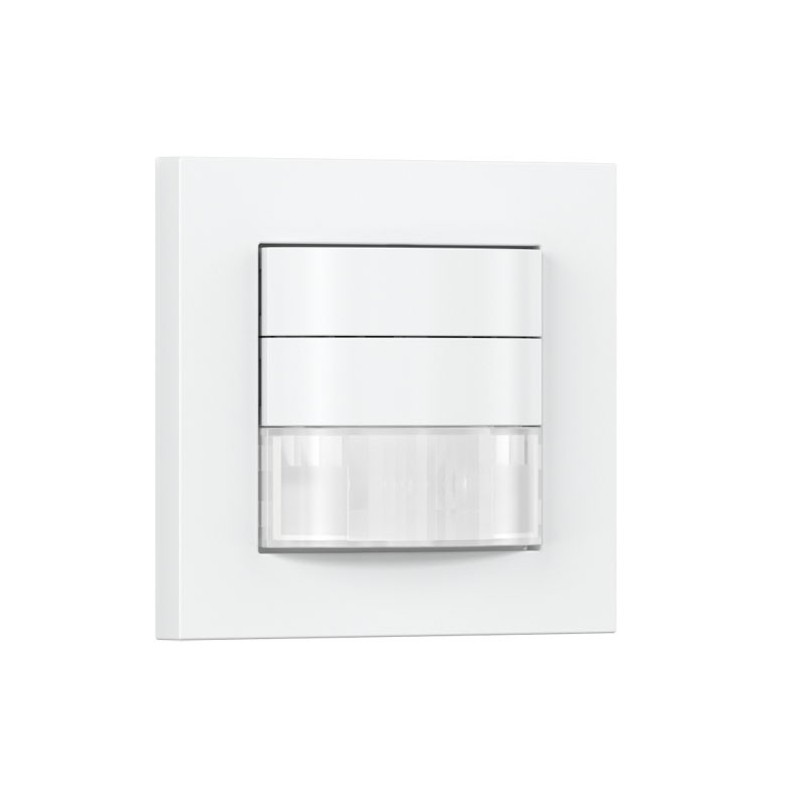

IR 180 UNIVERSAL Motion/presence detector 180º 200W IP20

IR 180 UNIVERSAL Motion/presence detector 180º 200W IP20

Type: Presence detector
Dimensions (L x W x H): 30 x 80 x 80 mm
Mains power supply: 220 – 240 V / 50 – 60 Hz
Sensor Technology: passive infrared
Application, place: Indoors
Installation: Concealed wiring
Electronic scalability: Yes
Mounting height: 1,10 – 1,20 m  optimum 1,2m
Detection angle: 180 °
Angle of aperture: 90 °
Sneak-by guard: Yes
Capability of masking out individual segments: No
Reach, radial: r = 4 m (25 m²)
Reach, tangential: r = 20 m (628 m²)
Twilight setting TEACH: Yes
Twilight setting: 2 – 1000 lx
Time setting: 30 s – 15 Min.
Functions: Switch active / switch inactive, Normal / test mode, Manual ON / ON-OFF
Settings via: Remote control,Potentiometers,Smart Remote
IP-rating: IP20
Ambient temperature: 0 – 40 °C

Code Description Price Price+VAT Unit
033149
IR 180 UNIVERSAL liikumisandur süvistatav 180° 20m IP20 3,5-200W (max 6xLED) 2-juhtme ühendus Steinel €133.24
€126.58
-5%
€154.43
Code: 033149
IR 180 UNIVERSAL liikumisandur süvistatav 180° 20m IP20 3,5-200W (max 6xLED) 2-juhtme ühendus Steinel
-5% Price: €133.24 €126.58
Price+VAT: €154.43
