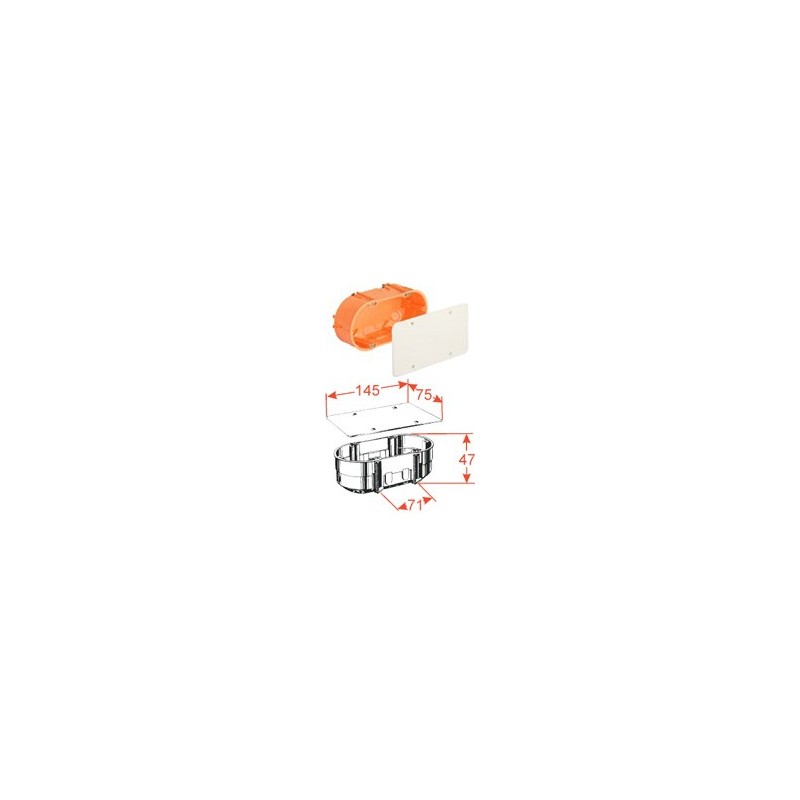

9062-21

Junction box

cutting hole 2 x Ø 68 mm (centre to centre distance 71 mm)
for plate thickness 7 - 35 mm
for 10 terminals 1.5 mm², 8 terminals 2.5 mm² or 6 terminals 4 mm²
6 entries for 20 mm Ø DIN EN conduits
6 sheathed cable entries
cover screws distance 60 mmA
replacement cover Atr. no. 9062-90
with holding ring
fireproof up to 850° C to VDE 0606 norm
protection class IP 3X - junction boxes are delivered with cover and cover screws
flat cover edge surfaces roughed, countersunk for screw heads
for loose terminals up to 4 mm²
